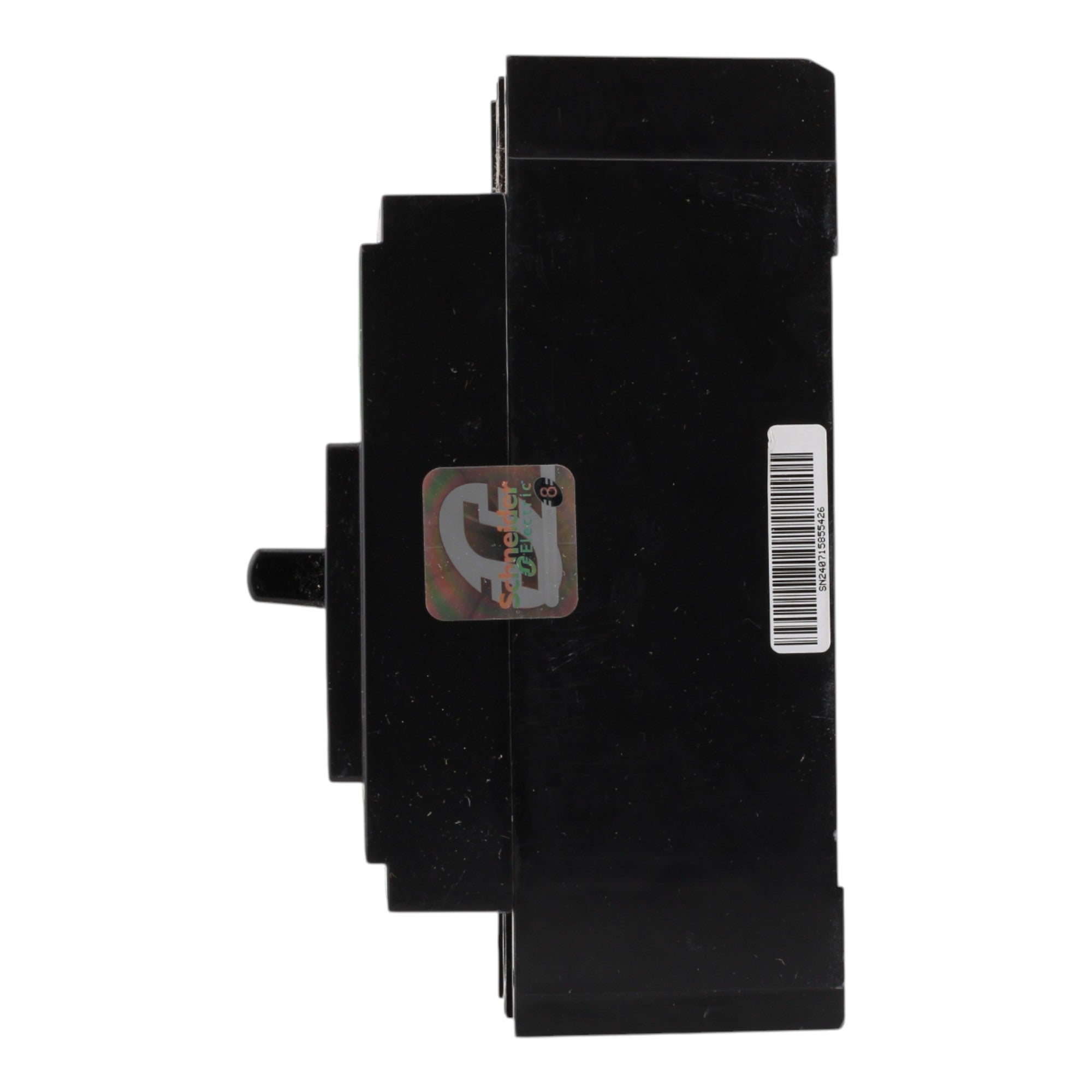

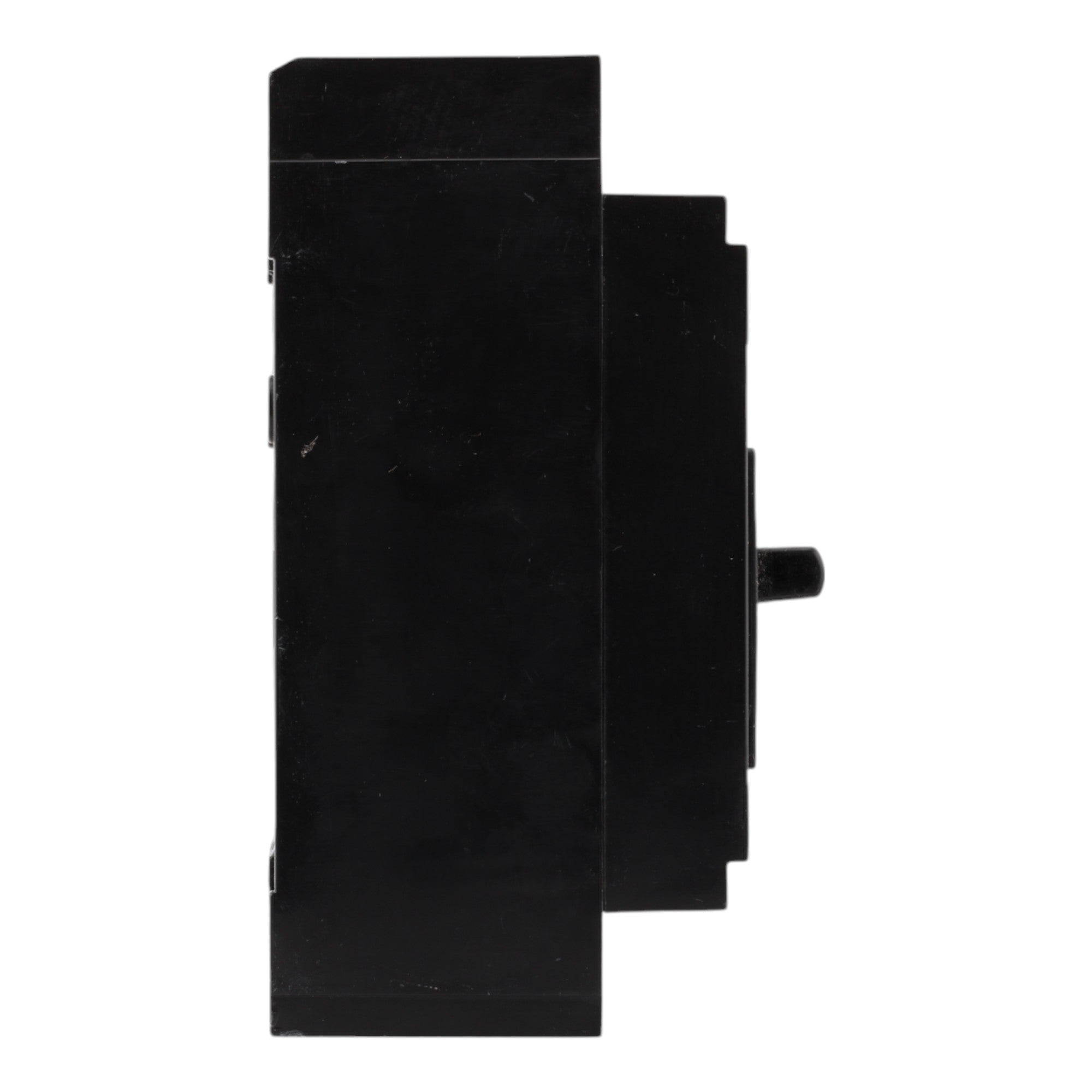

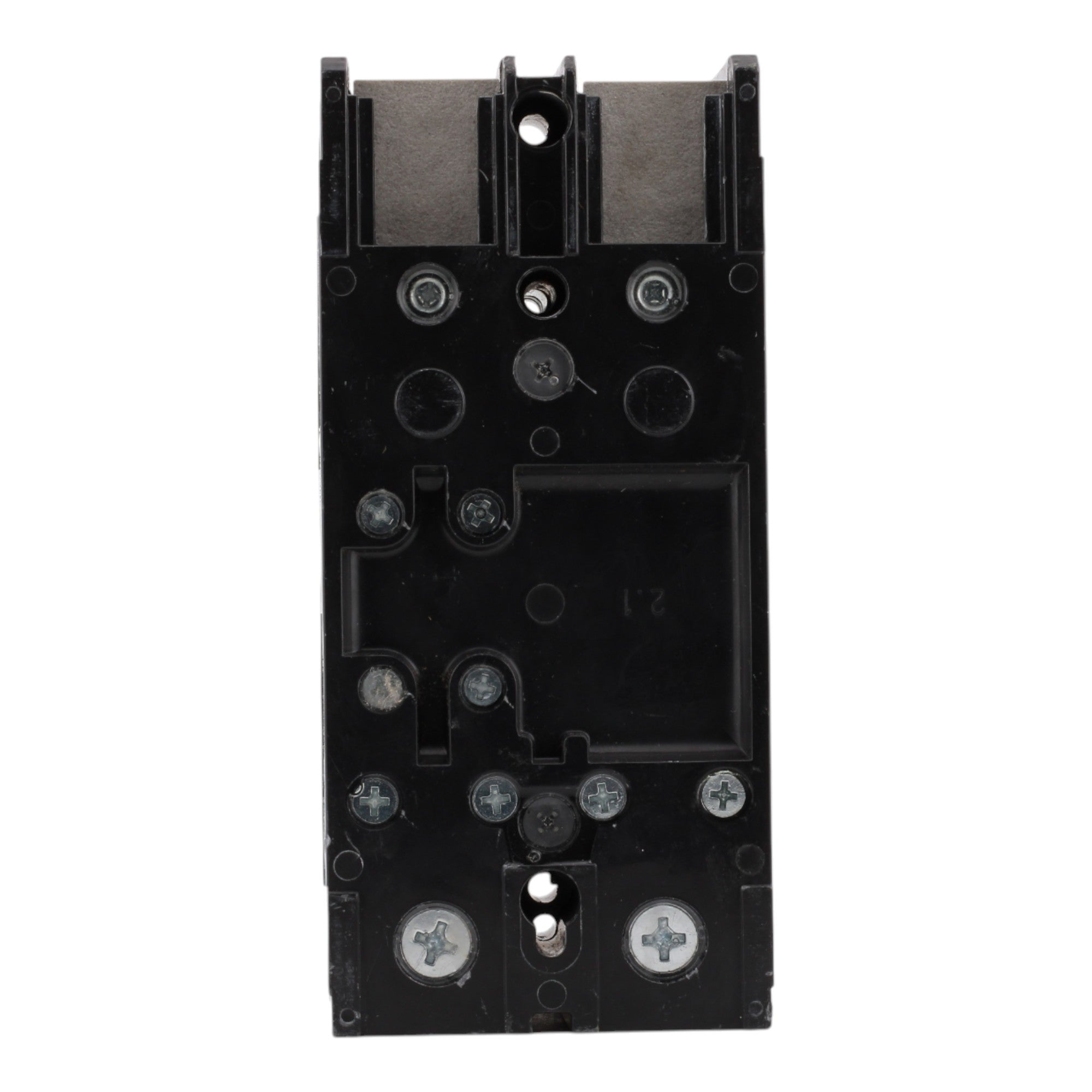

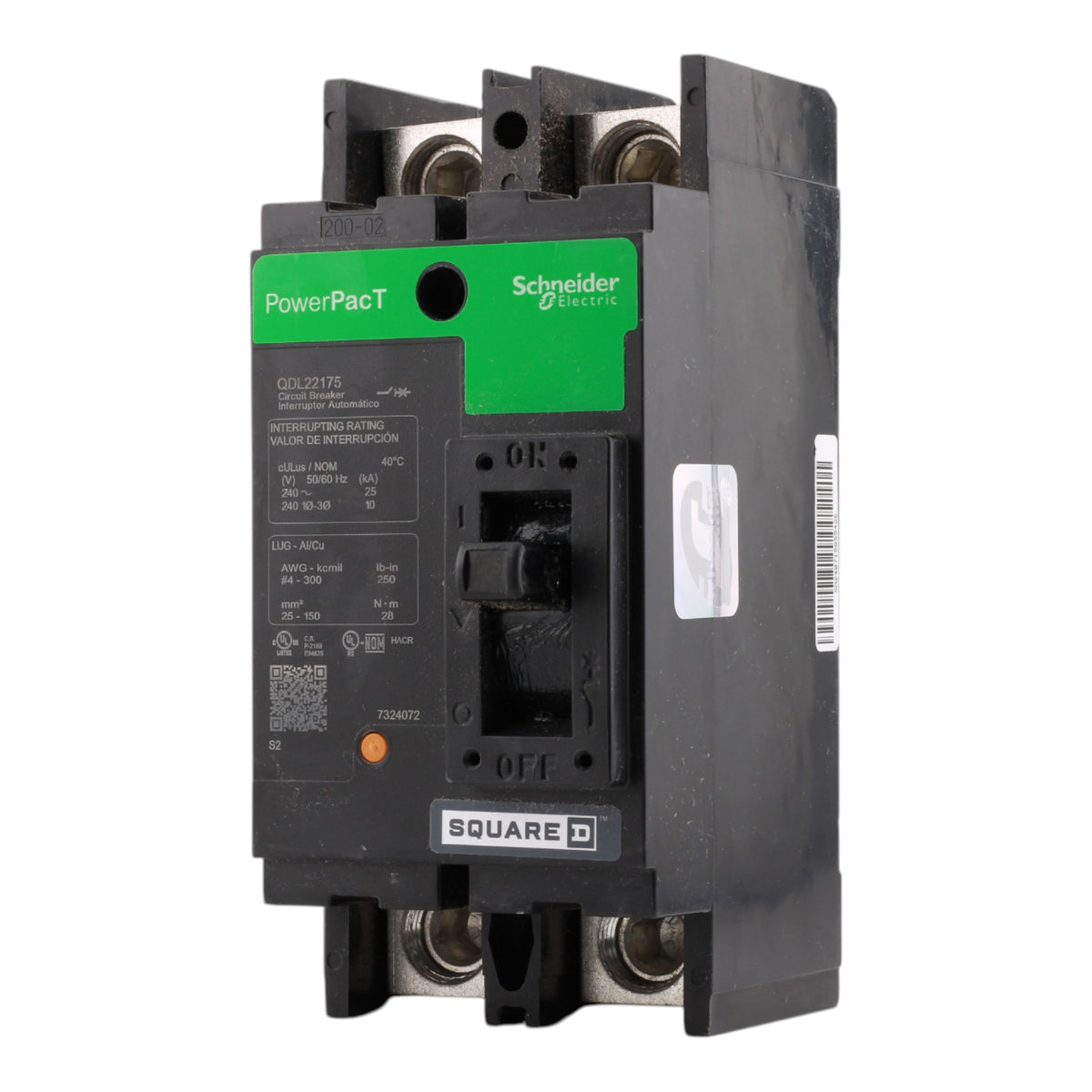

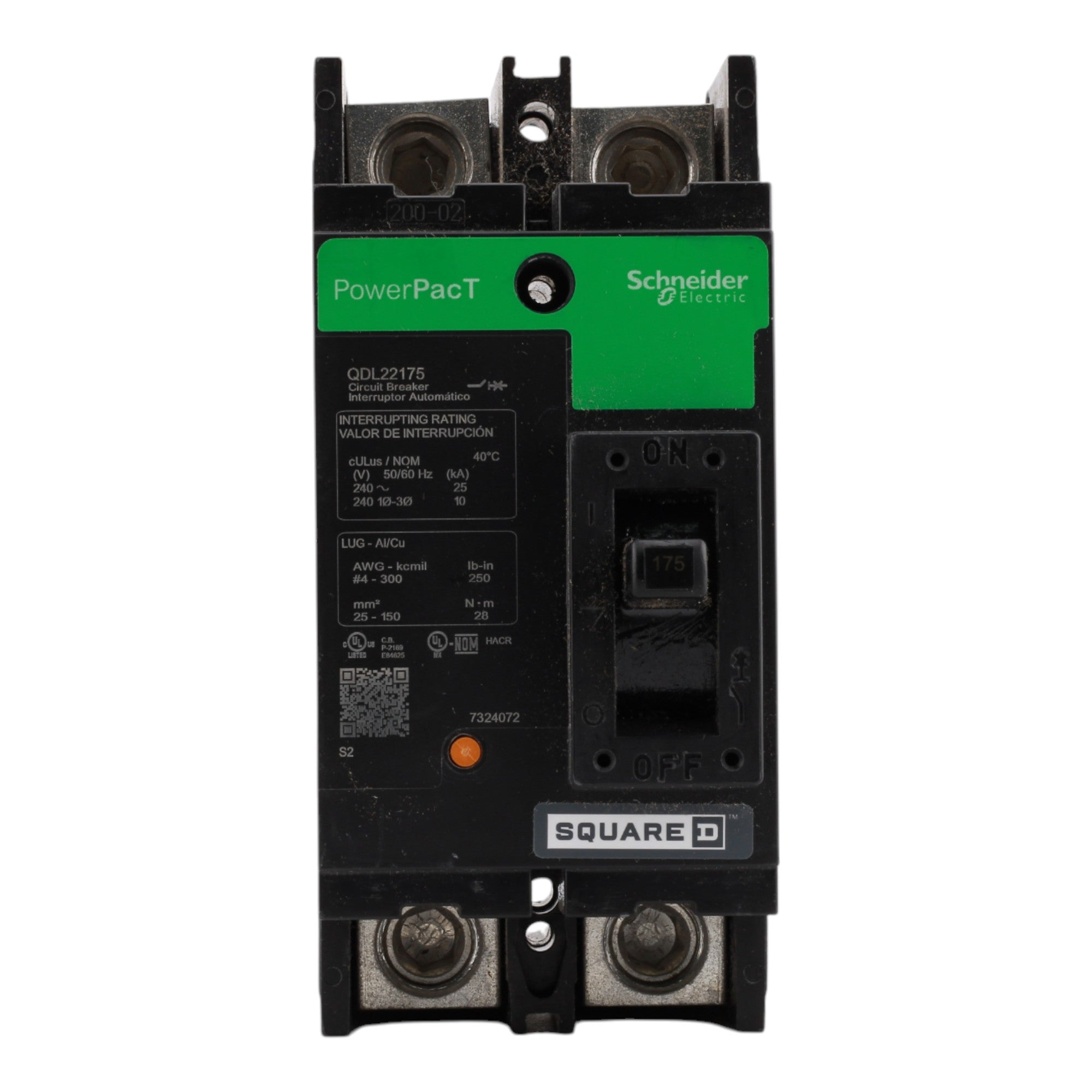

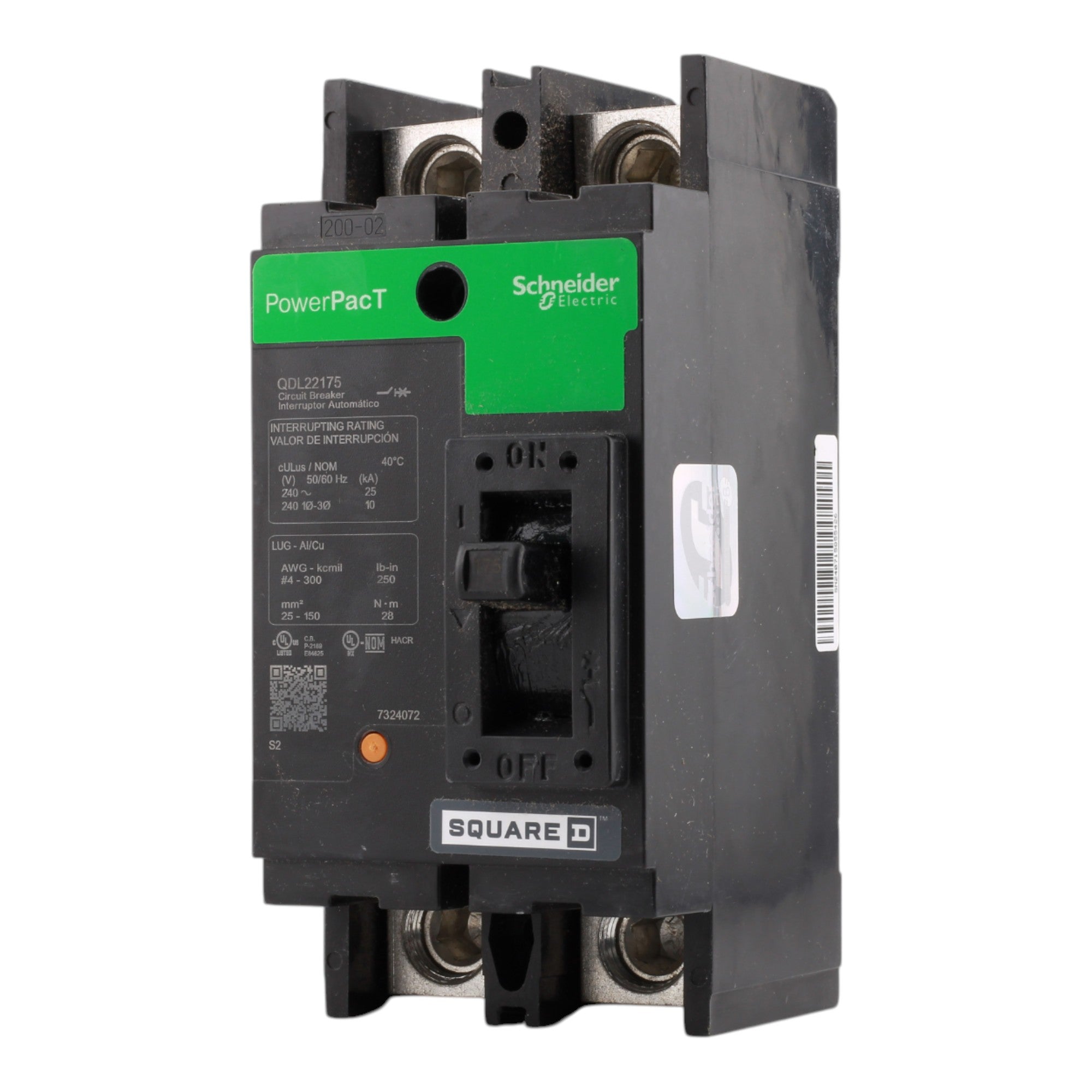

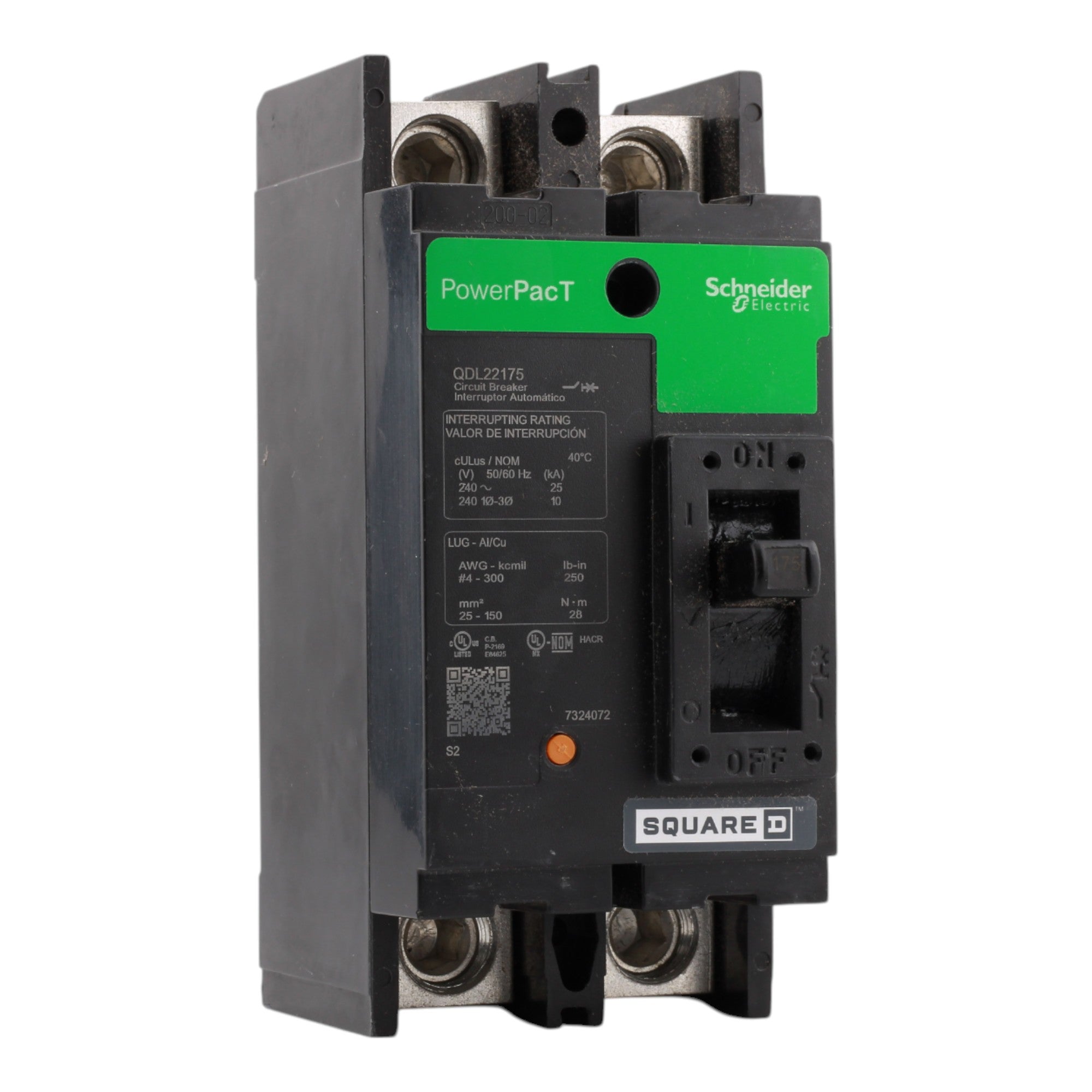

Square D QDL22175 Circuit breaker PowerPacT Q, 175A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%

Schneider QDL22175 PowerPacT Q-Frame: 175A 2-pole thermal-magnetic circuit breaker, 240VAC, 25kA interrupt rating, 80% continuous current rating, UL/CSA certified, HACR rated, with lug terminations.

• Manufacturer: Schneider Electric
• Brand: Schneider Electric
• UPC: 785901522836
• Model Number: QDL22175
• Type: PowerPacT Q-Frame Molded Case Circuit Breaker
• Application: Distribution
• Voltage Rating: 240V AC
• Amperage Rating: 175A
• Number of Poles: 2-Pole
• Interrupt Rating: 25 kA at 120/208V AC and 240V AC
• Trip Unit Technology: Thermal-Magnetic
• Magnetic Tripping Current: 2400A
• Magnetic Hold Current: 1200A
• Continuous Current Rating: 80%
• Utilization Category: Category A

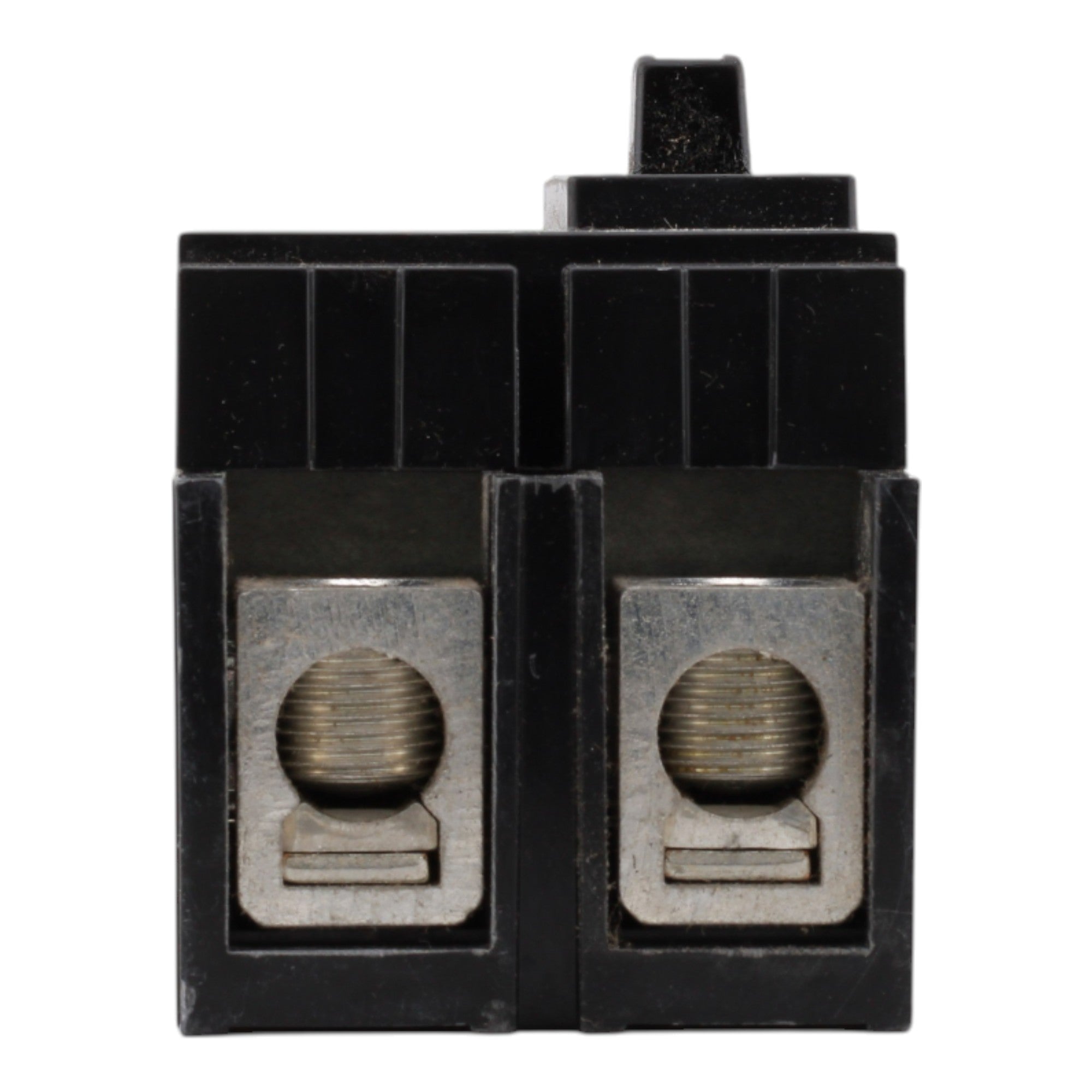

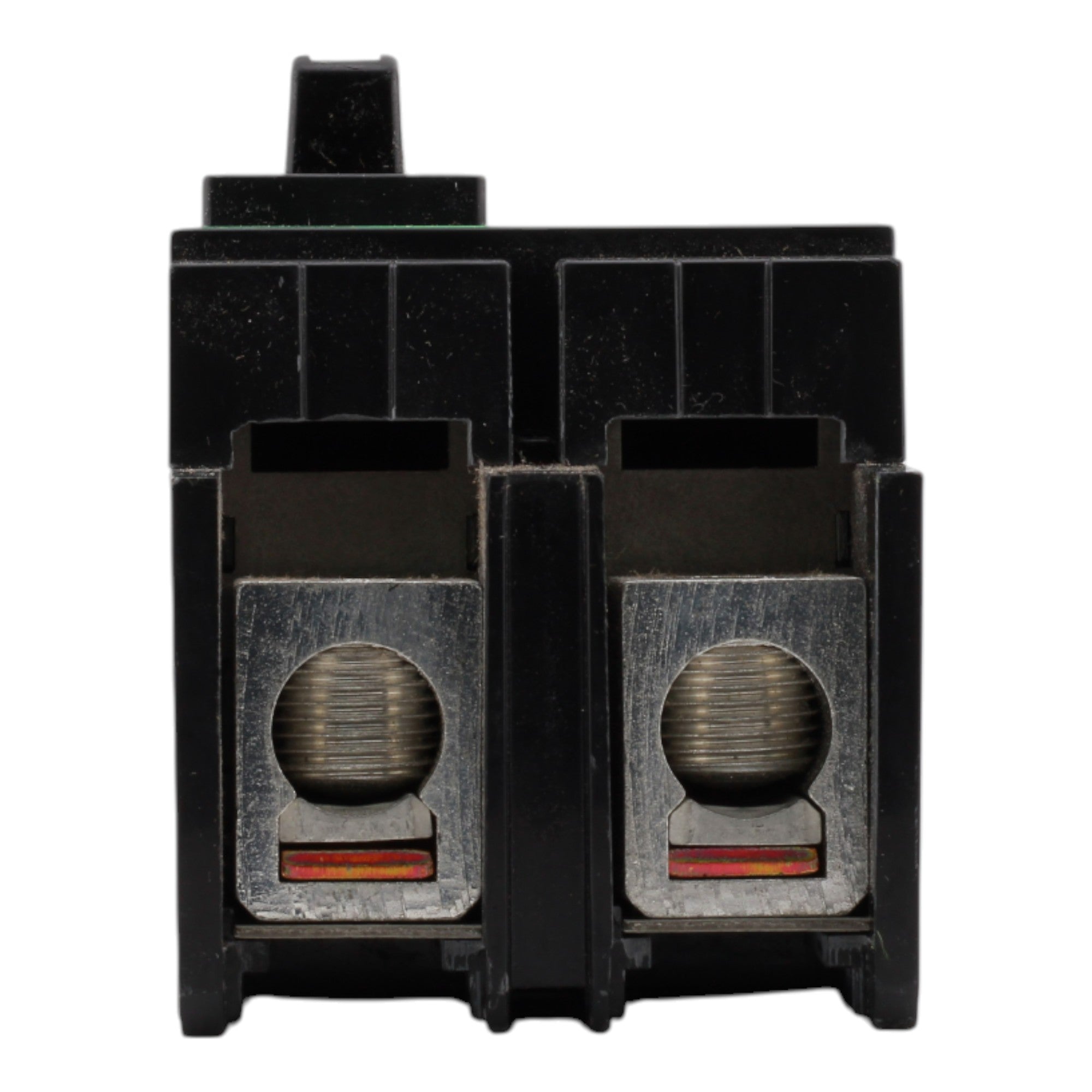

• Connection Type: Lugs (Line and Load)
• Tightening Torque: 247.8 lbf.in (28 N.m)
• Wire Size Range: 0.04-0.2 in² (25-150 mm²) (AWG 4-300 kcmil)
• Dimensions: Height: 6.47 in; Width: 3 in; Depth: 3.93 in
• Mechanical Durability: 1000 cycles loaded, 5000 cycles no load
• Features: Push-to-trip button, Trip indicator (green)
• HACR Rated: Yes
• Mounting Type: Unit mount lug
• Standards: UL, CSA, NEMA, NOM-003-SCFI-2000
• Operating Temperature: 104-158°F (40-70°C)
