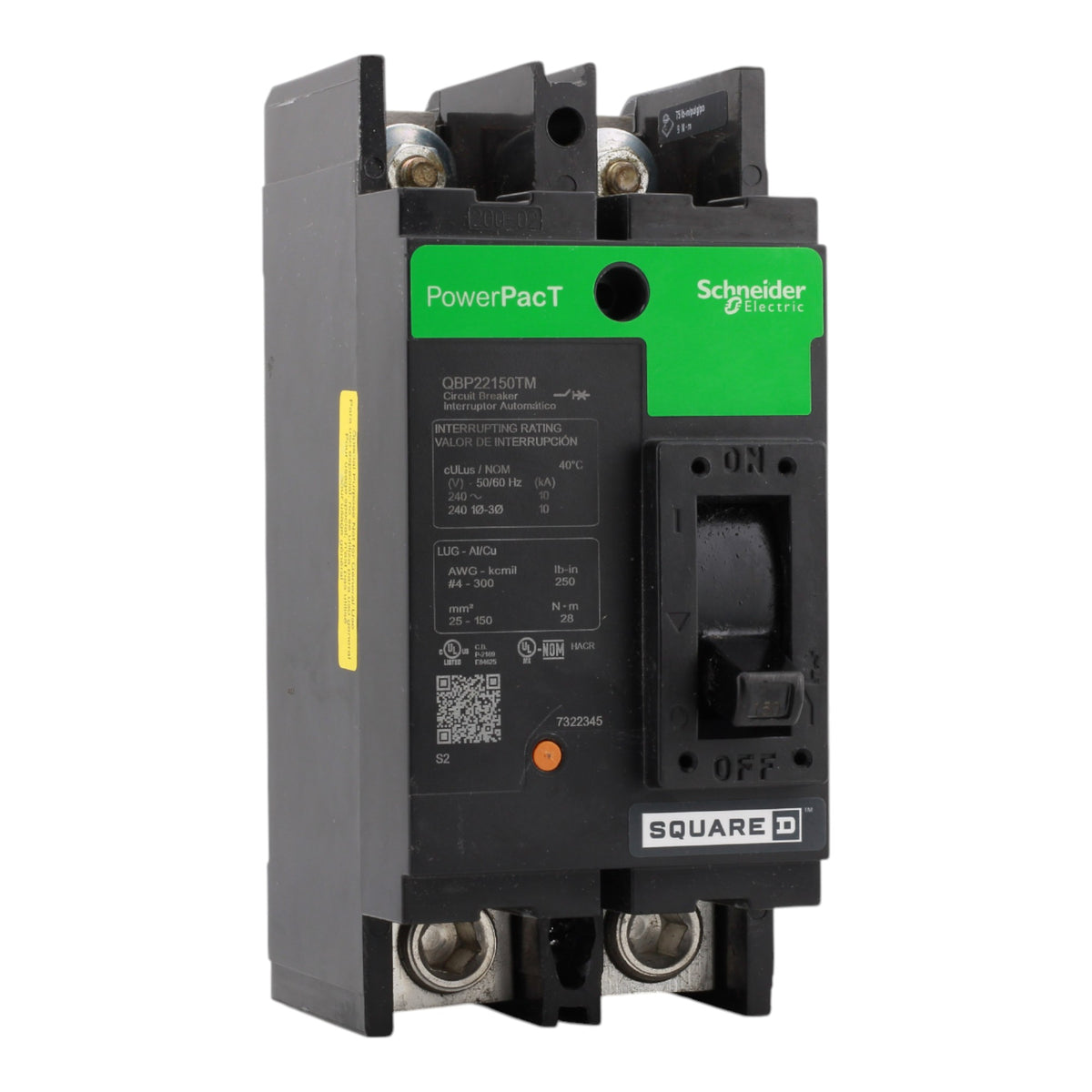

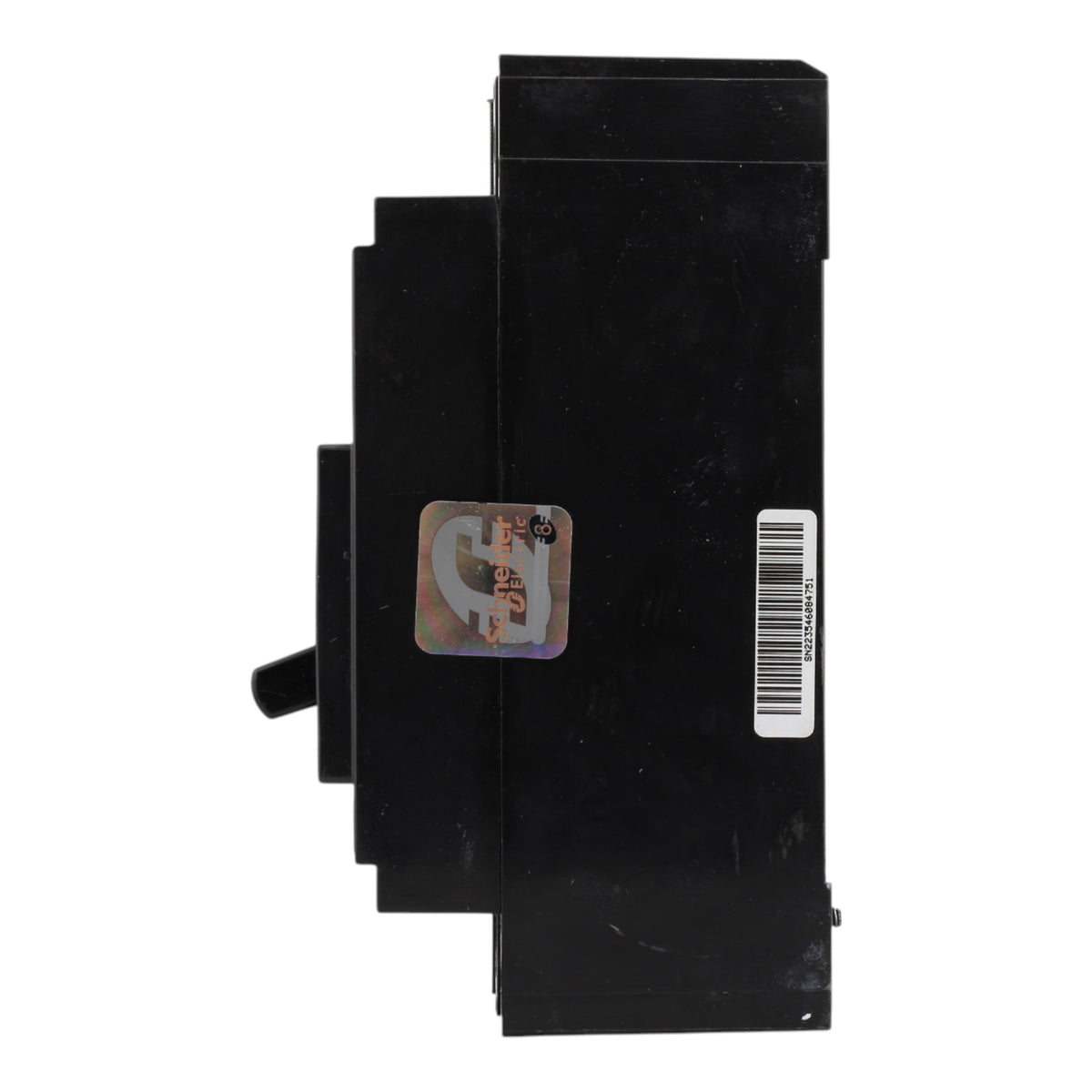

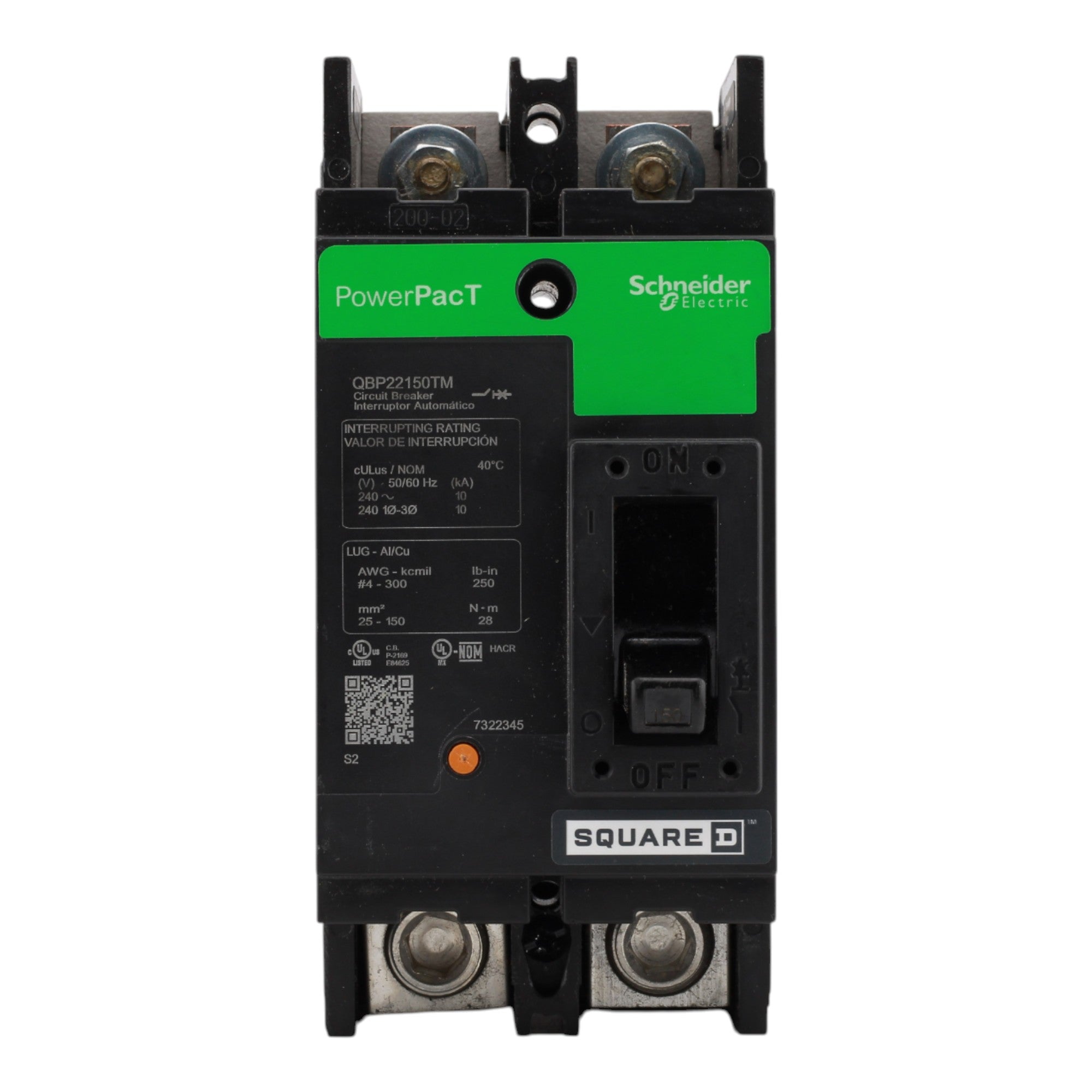

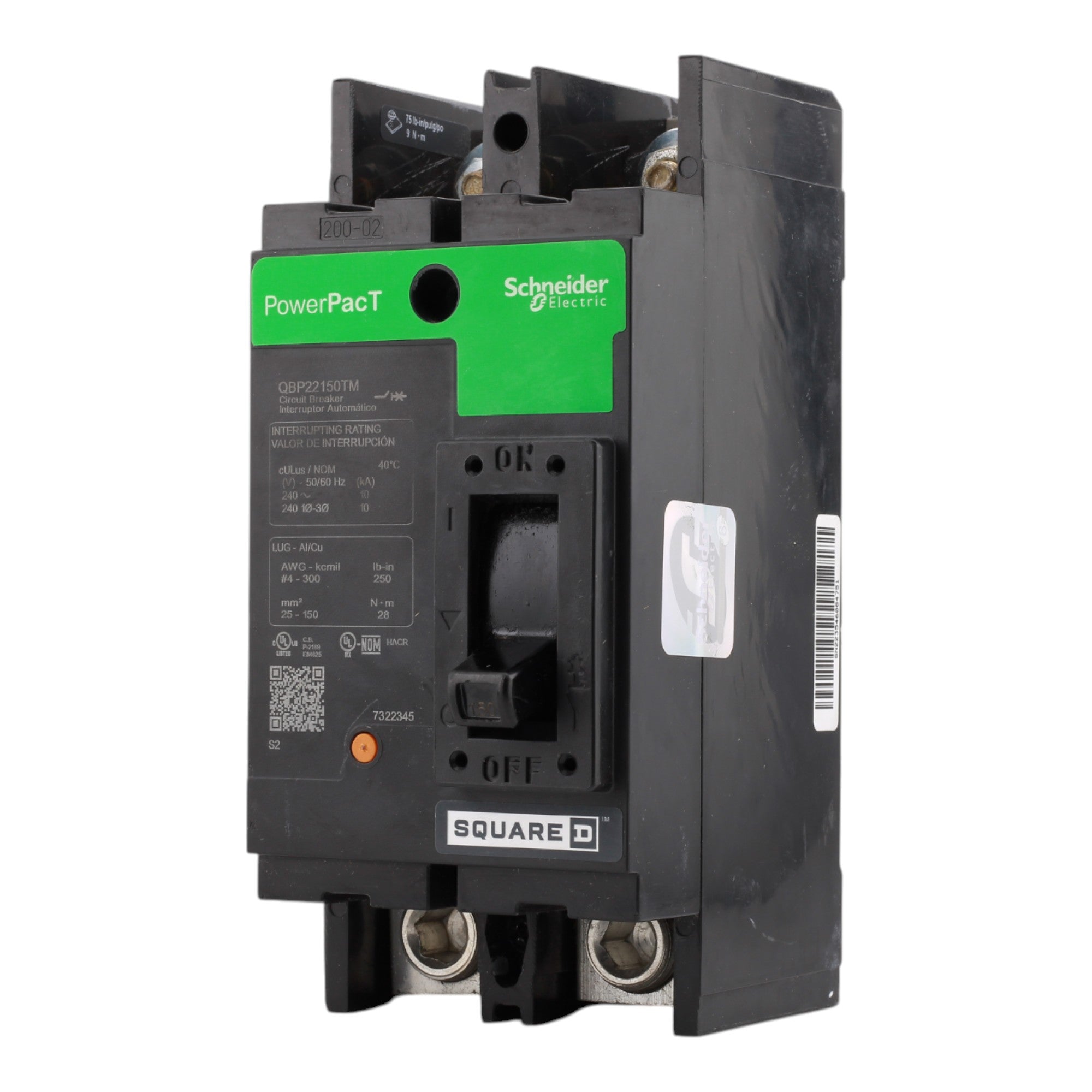

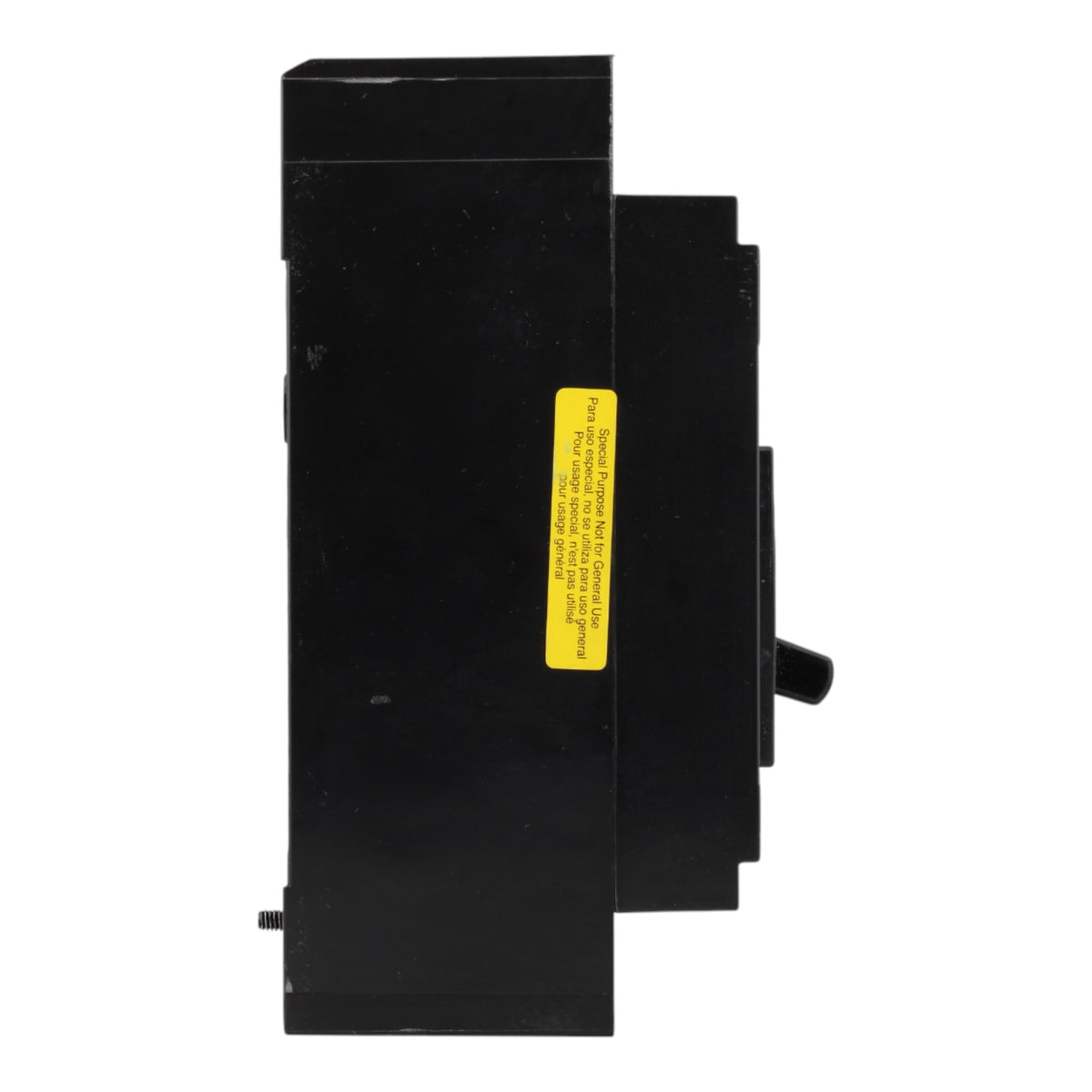

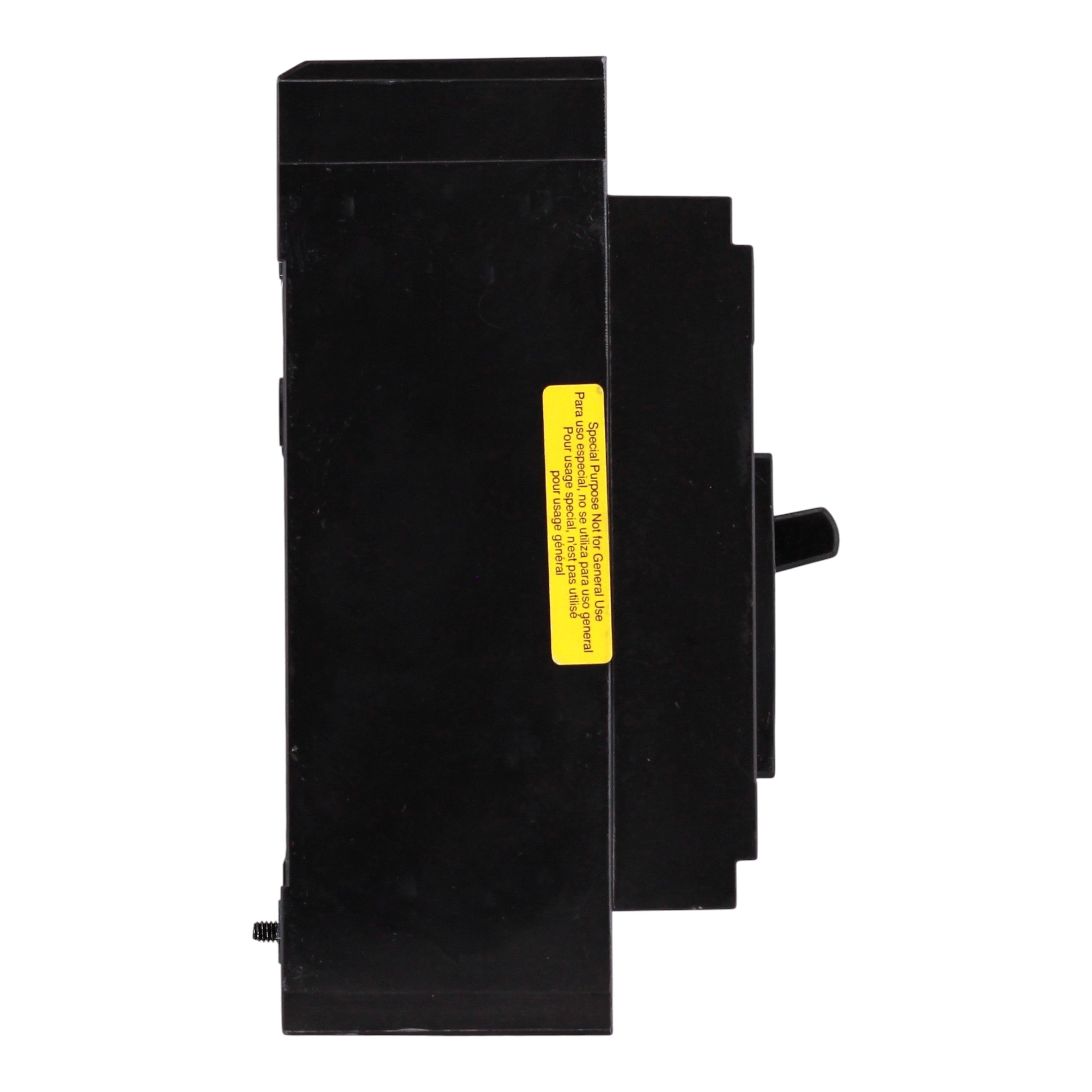

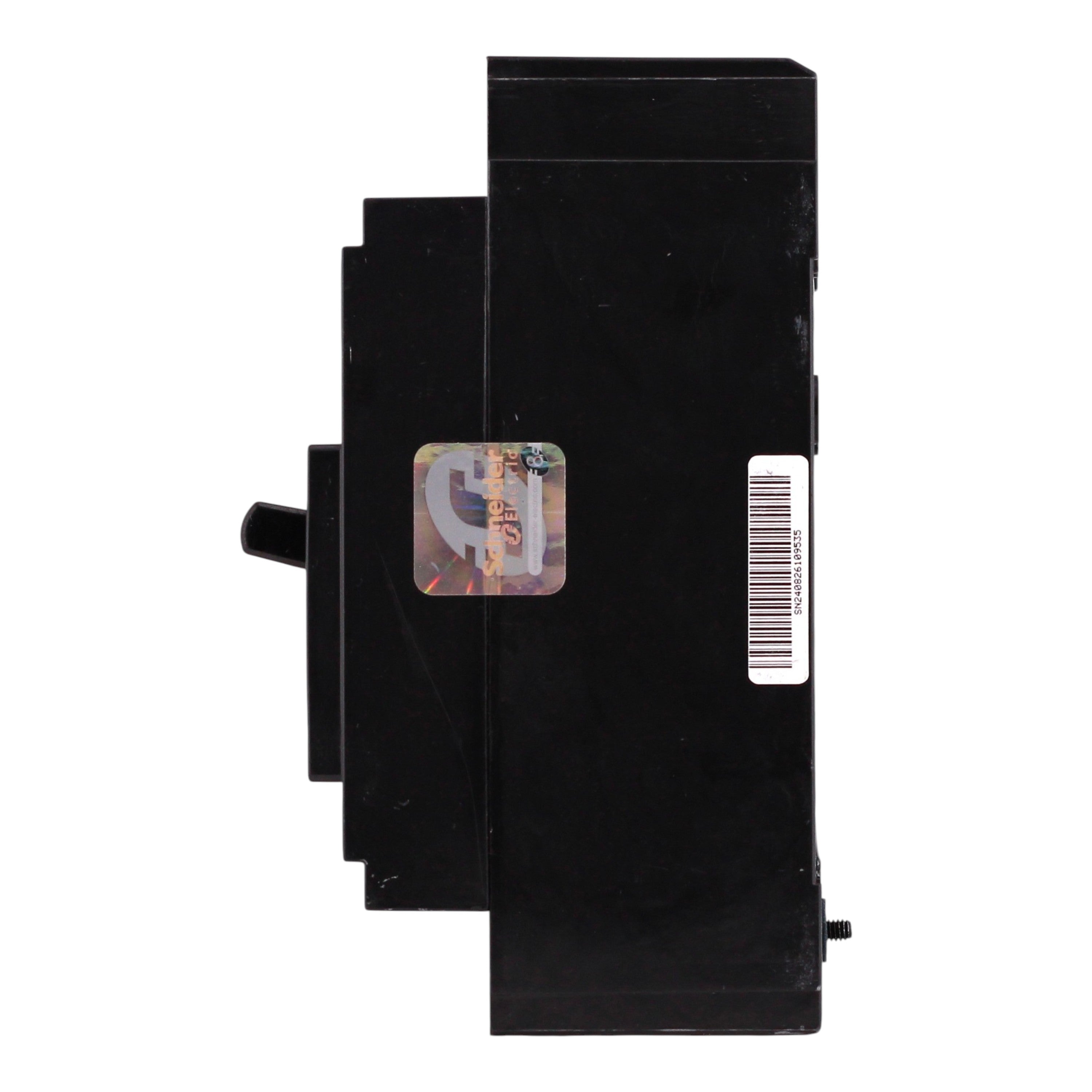

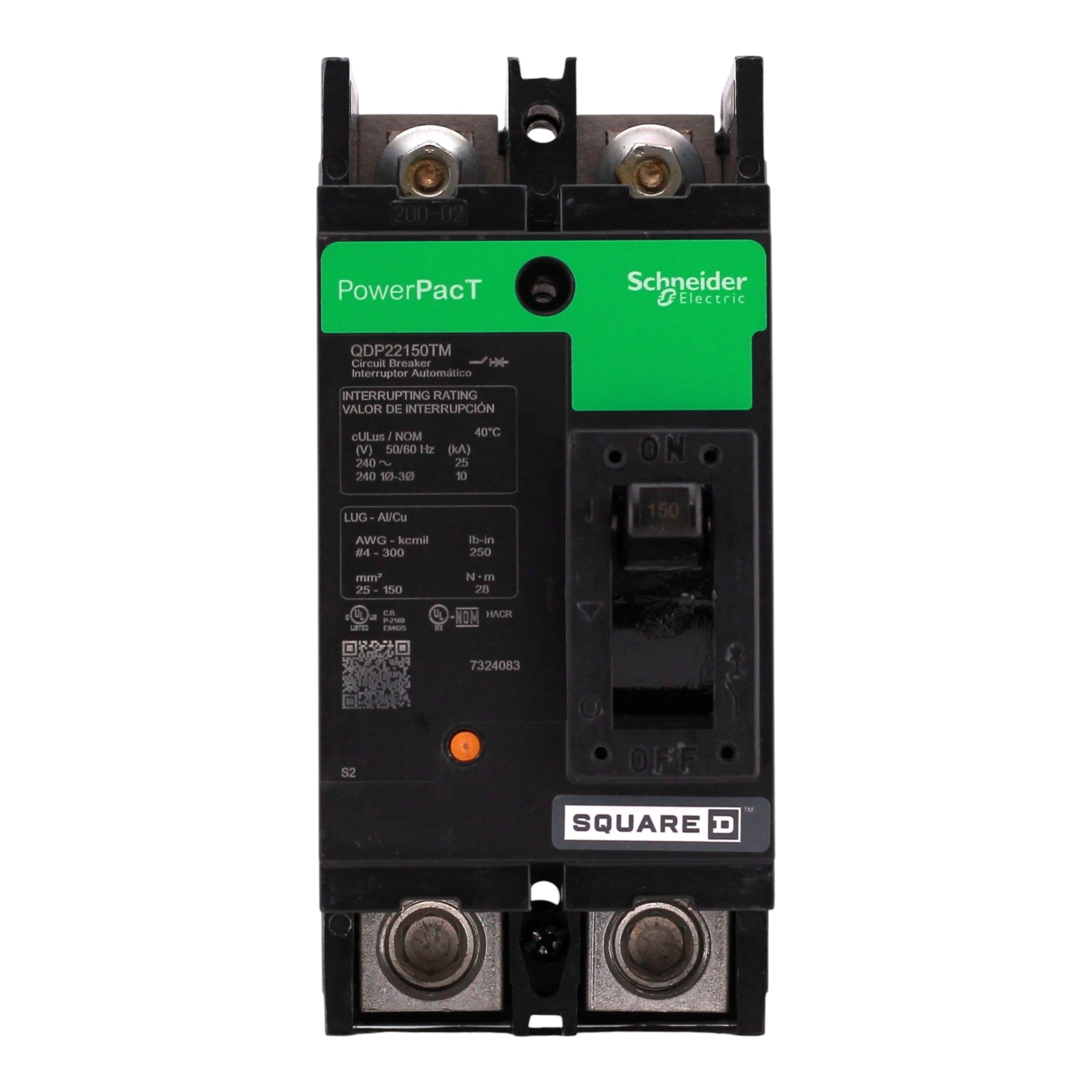

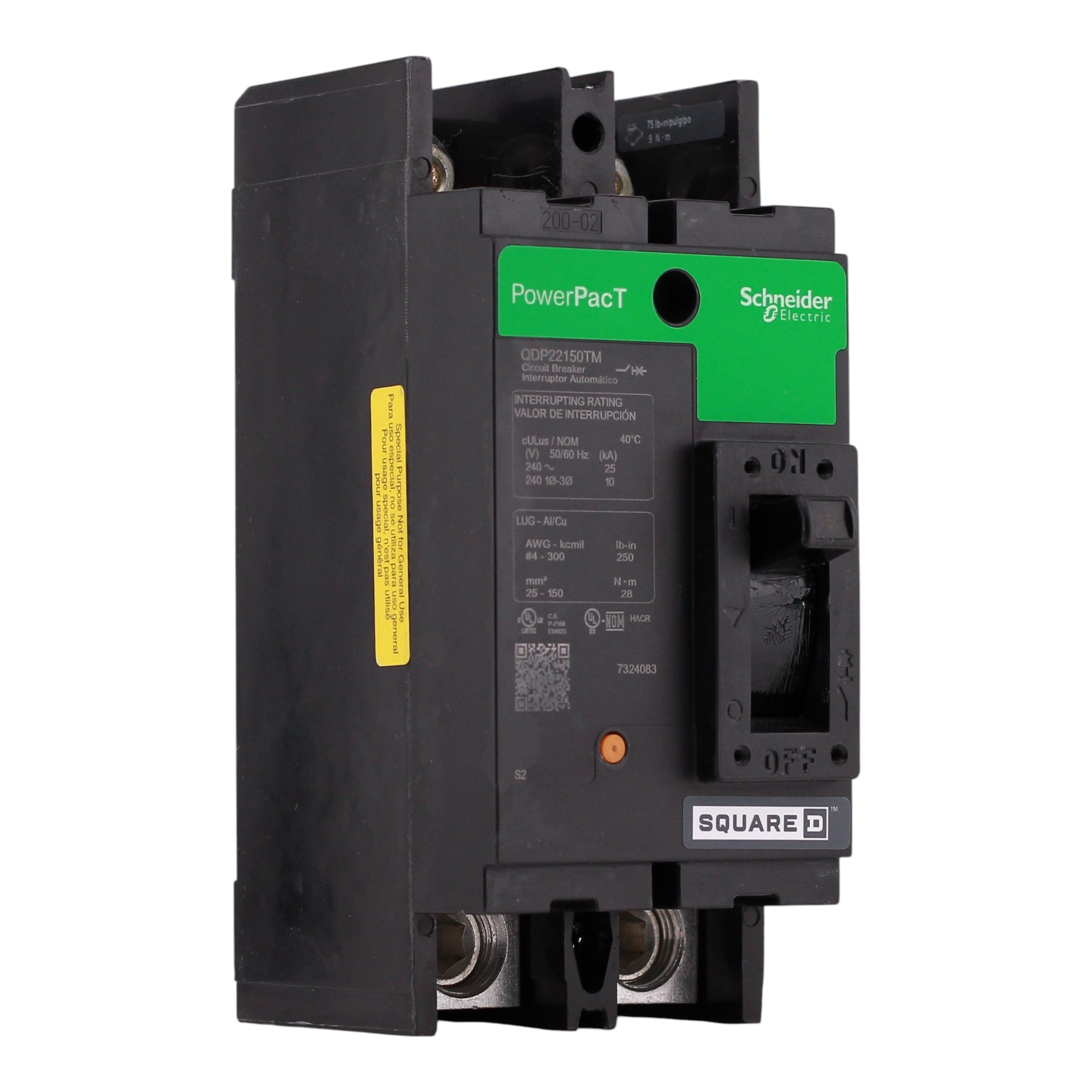

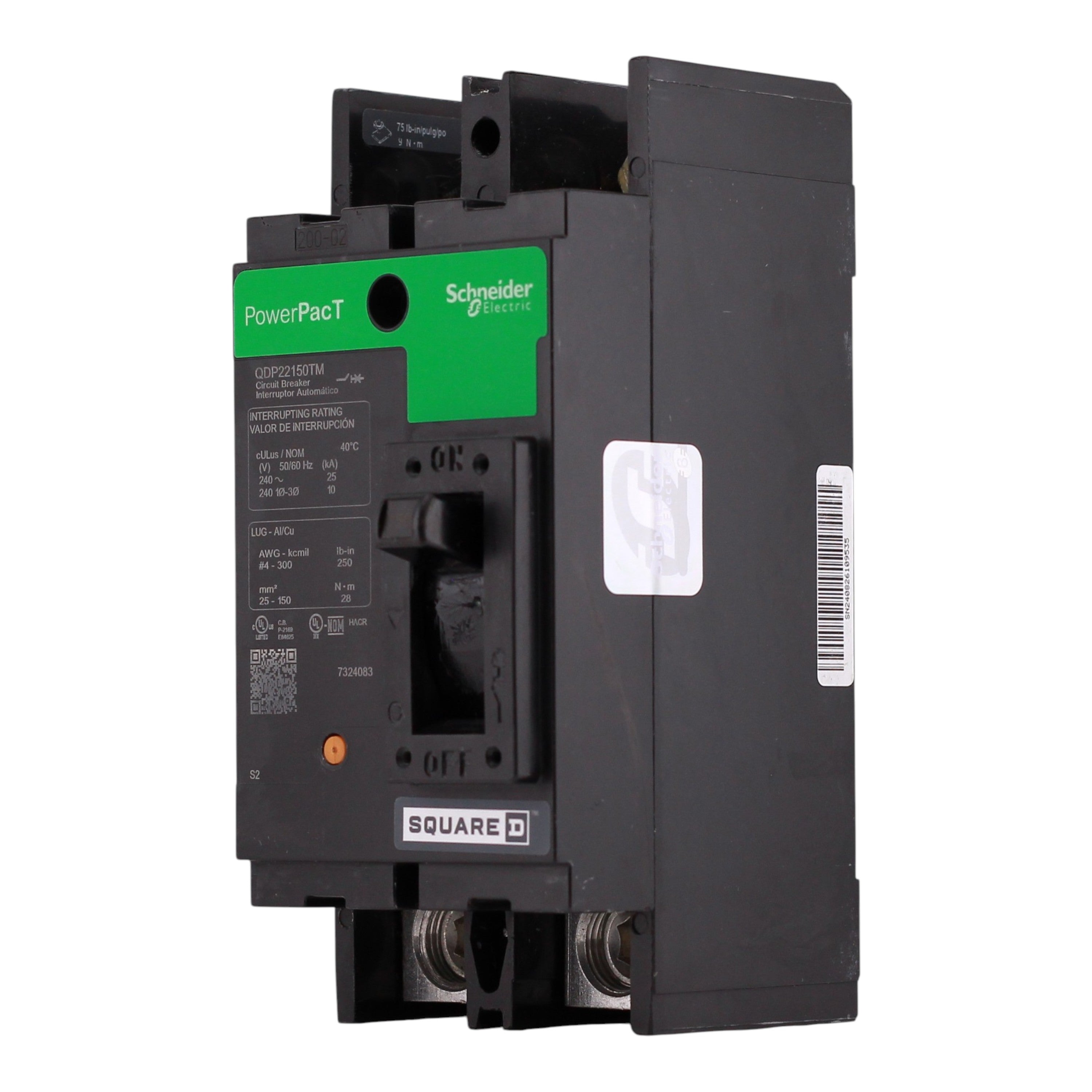

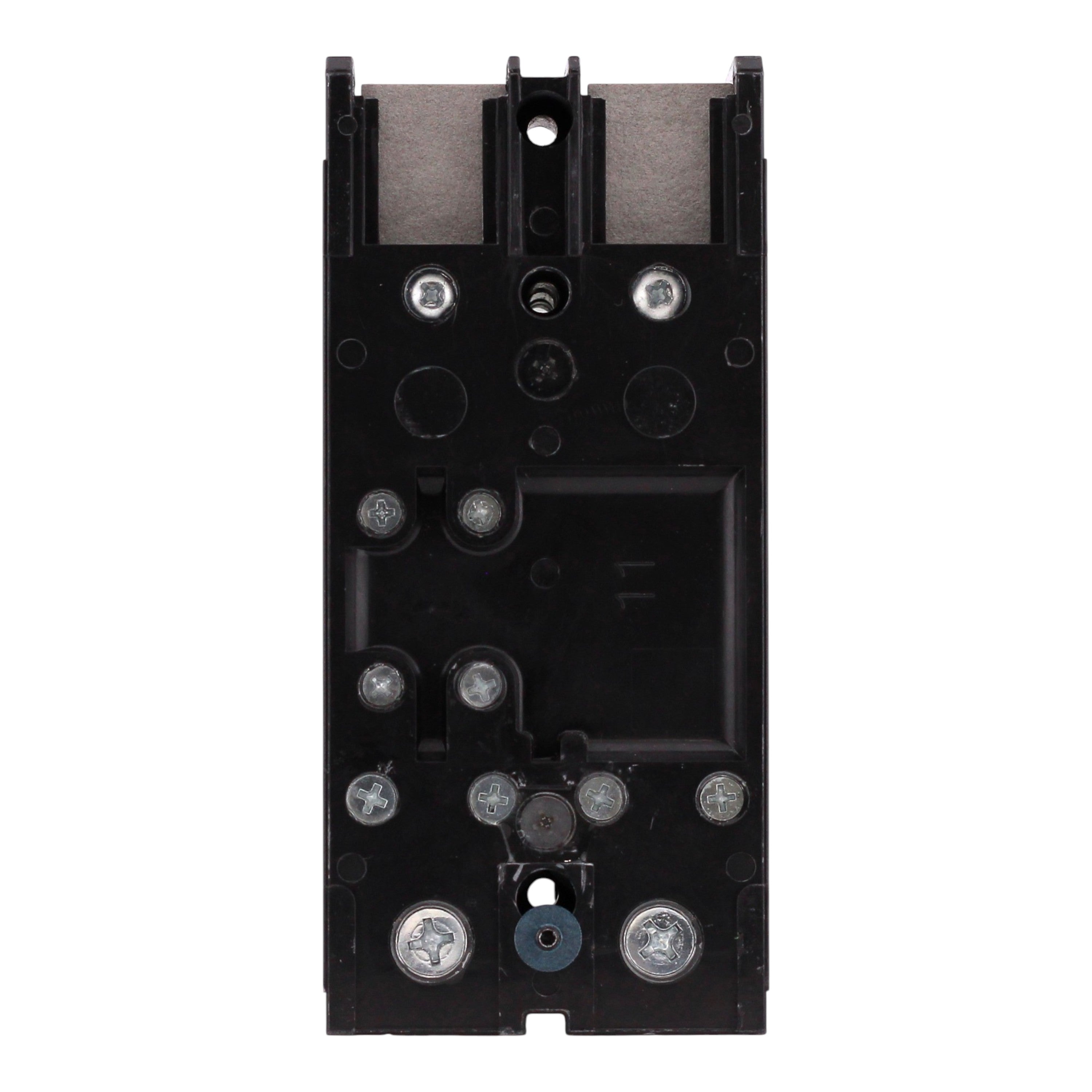

Square D PowerPacT QDP22150TM, 150A, 240V, 2-Pole Molded Case Circuit Breaker, Thermal Magnetic, 25kA, Lugs, for 240VAC Systems
Regular price
$131.95 USD
Regular price
Sale
$160.00 USD
Sale price
$131.95 USD
Schneider QDP22150TM PowerPacT Q-Frame: 150A 2-pole thermal-magnetic circuit breaker, 240VAC, 25kA interrupt rating, 80% continuous rating, terminal nuts/line, lugs/load, bottom panel mounting.
- Manufacturer: Schneider Electric
- Brand: Schneider Electric
- UPC: 785901662396
- Model Number: QDP22150TM
- Type: PowerPacT Q-Frame Molded Case Circuit Breaker
- Application: Distribution
- Voltage Rating: 240V AC
- Amperage Rating: 150A
- Number of Poles: 2-Pole
- Interrupt Rating: 25 kA at 120/208V AC and 240V AC
- Trip Unit Technology: Thermal-Magnetic
- Magnetic Tripping Current: 2400A
- Magnetic Hold Current: 1200A
- Continuous Current Rating: 80%
- Utilization Category: Category A

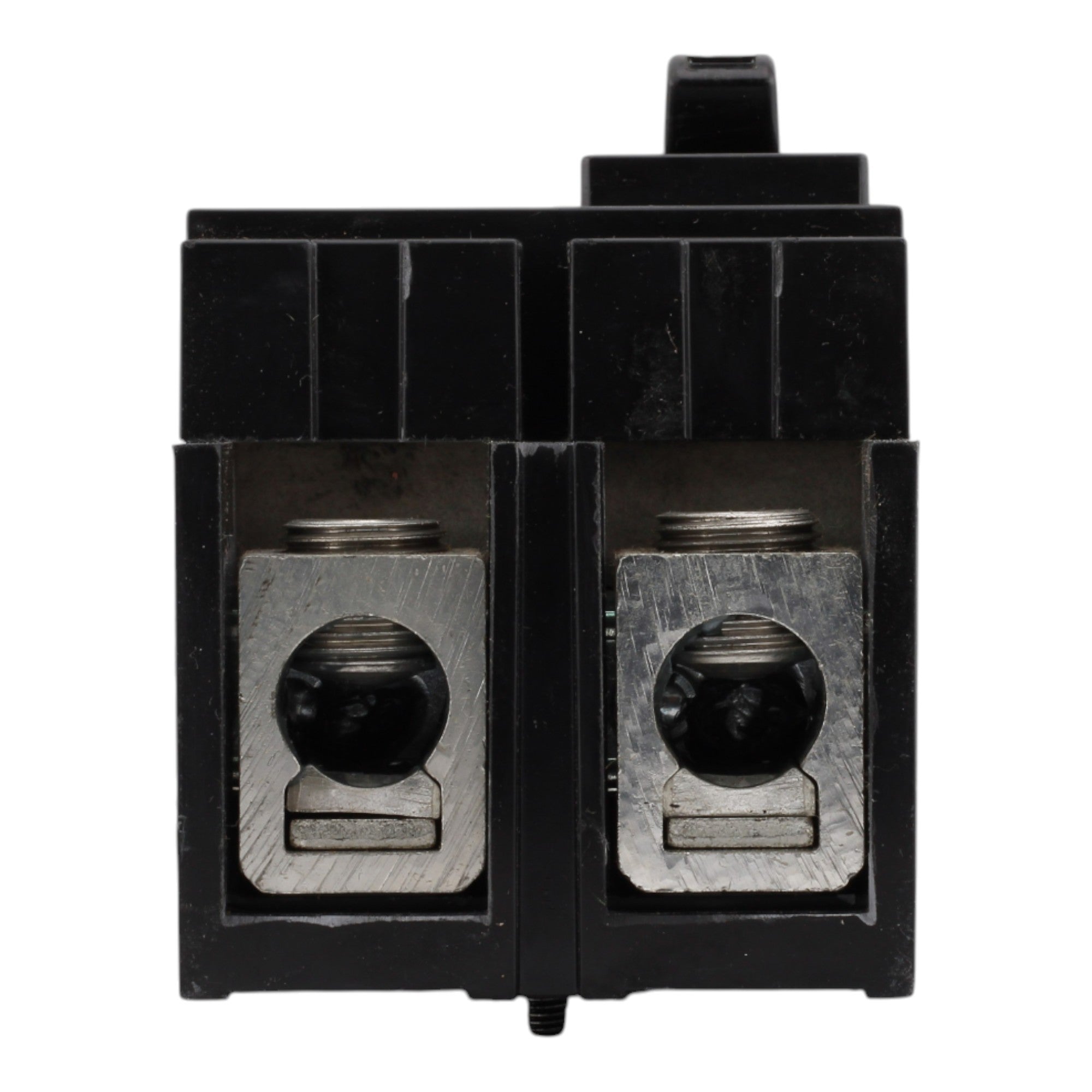

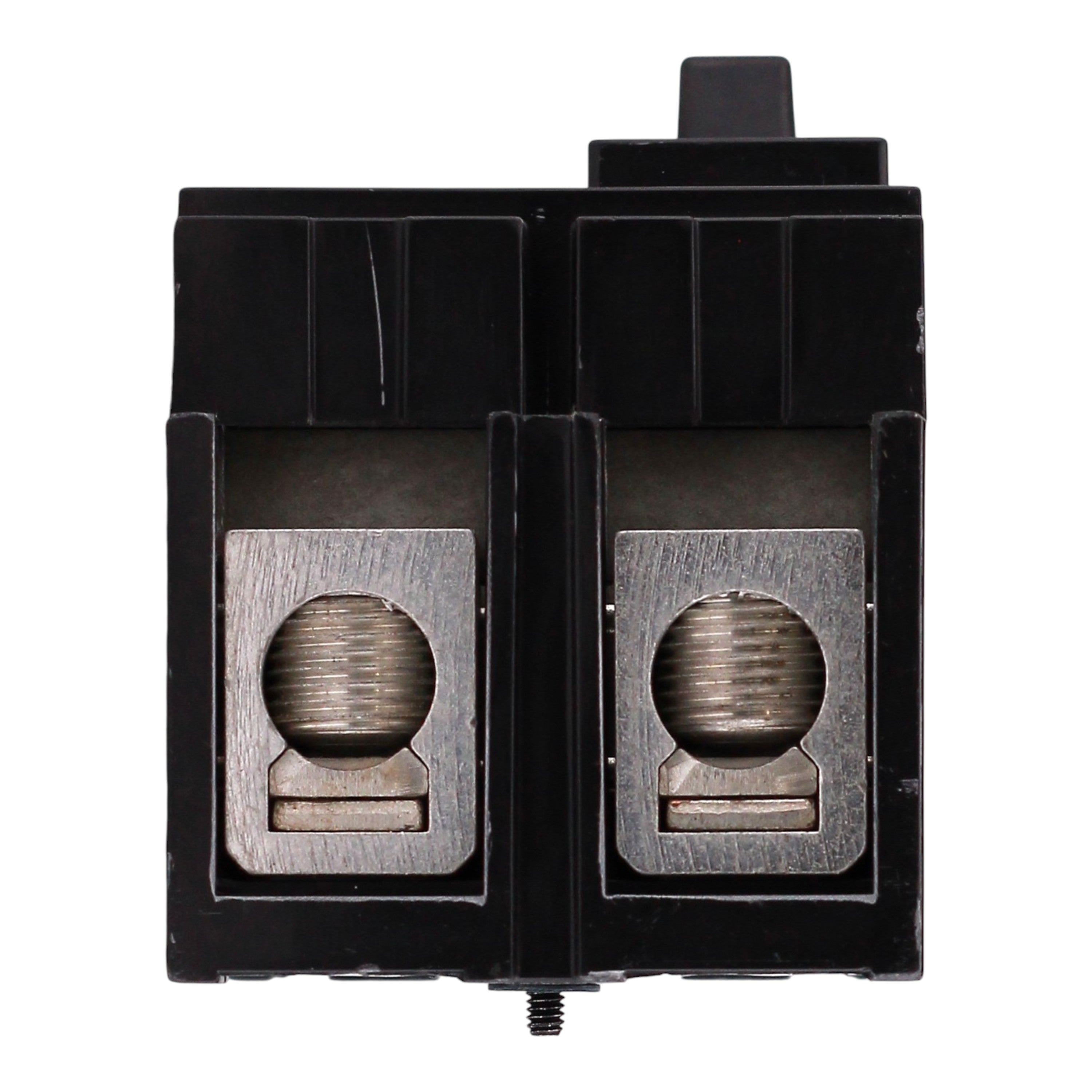

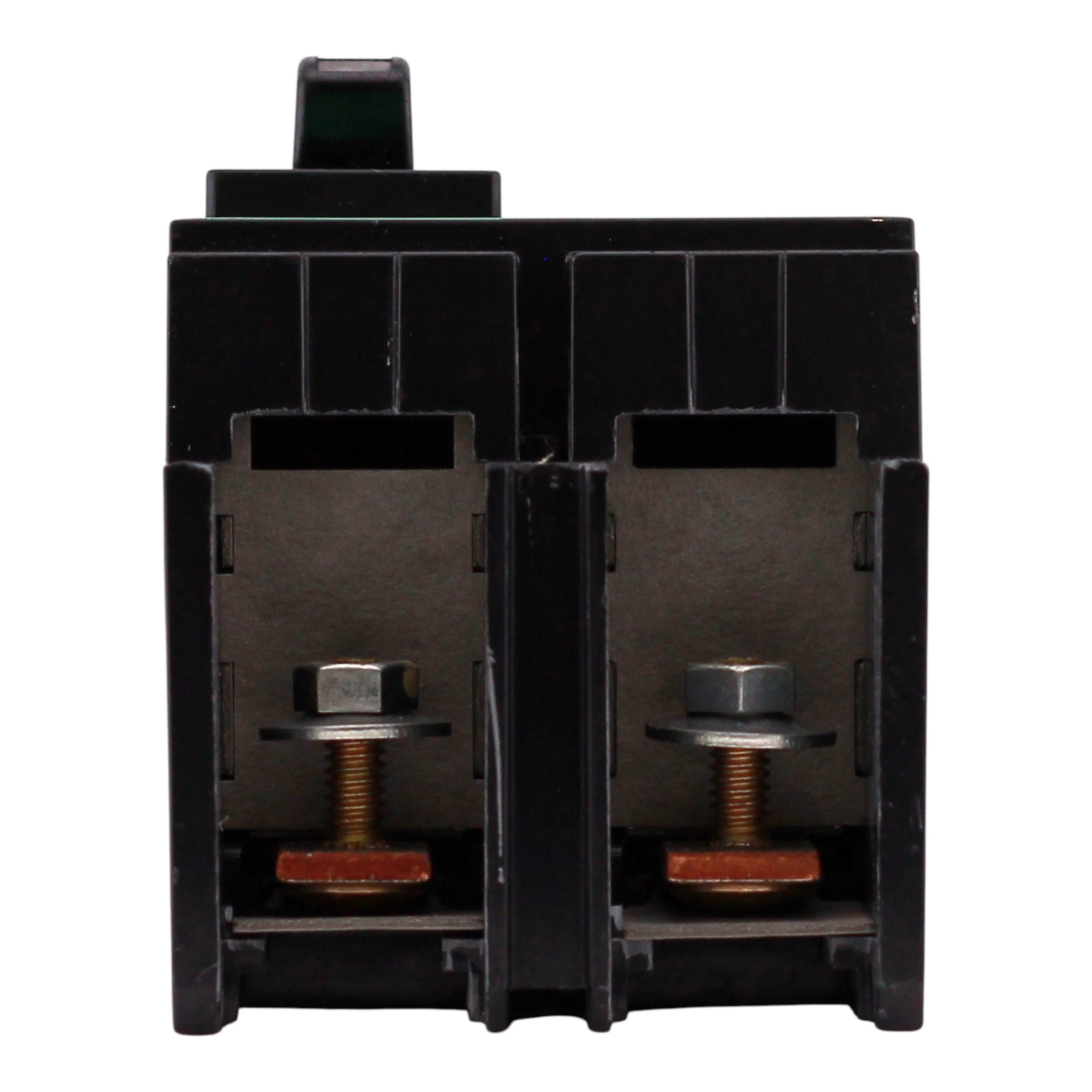

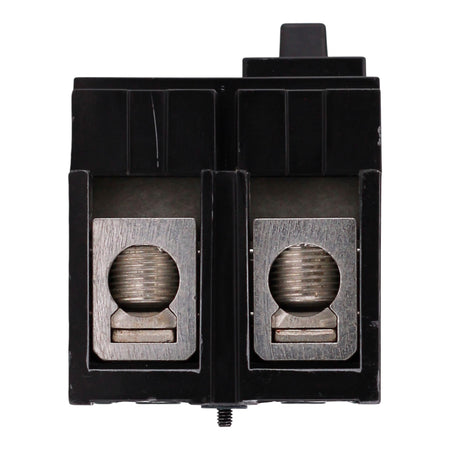

- Connection Type: Terminal nut (Line), Lugs (Load)

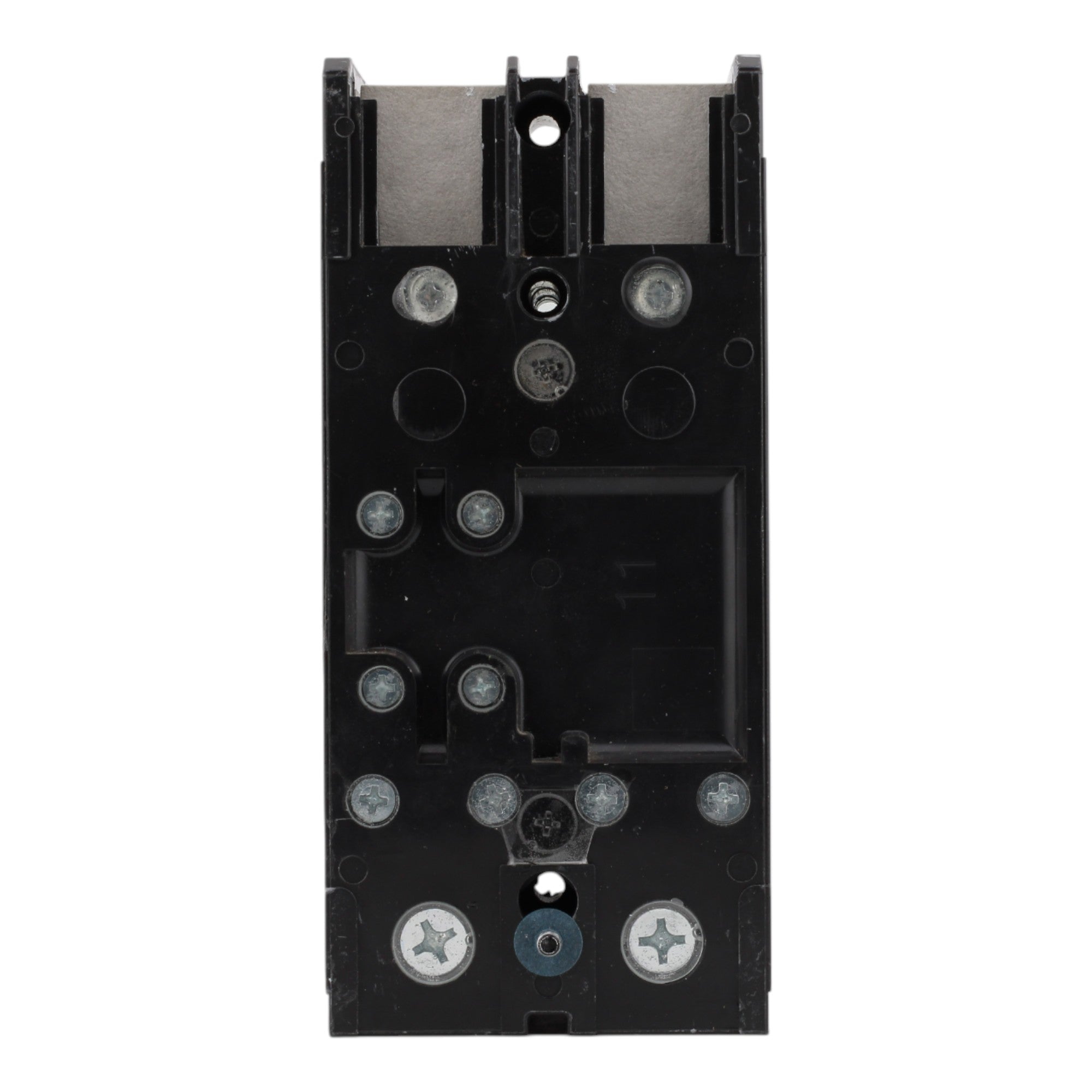

- Mounting Position: Bottom of panel
- Tightening Torque: 247.8 lbf.in (28 N.m)
- Wire Size Range: 0.04-0.2 in² (25-150 mm²) (AWG 4-300 kcmil)
- Wire Stripping Length: 0.9 in (22 mm)
- Dimensions: Height: 6.47 in; Width: 3 in; Depth: 3.93 in
- Weight: 3.250 lb
- Mechanical Durability: 1000 cycles loaded, 5000 cycles no load
- Features: Push-to-trip button, Trip indicator (green)
- HACR Rated: Yes
- Mounting Type: Unit mount lug
- Standards: UL, CSA, NEMA, NOM-003-SCFI-2000
- Operating Temperature: 104-158°F (40-70°C)
