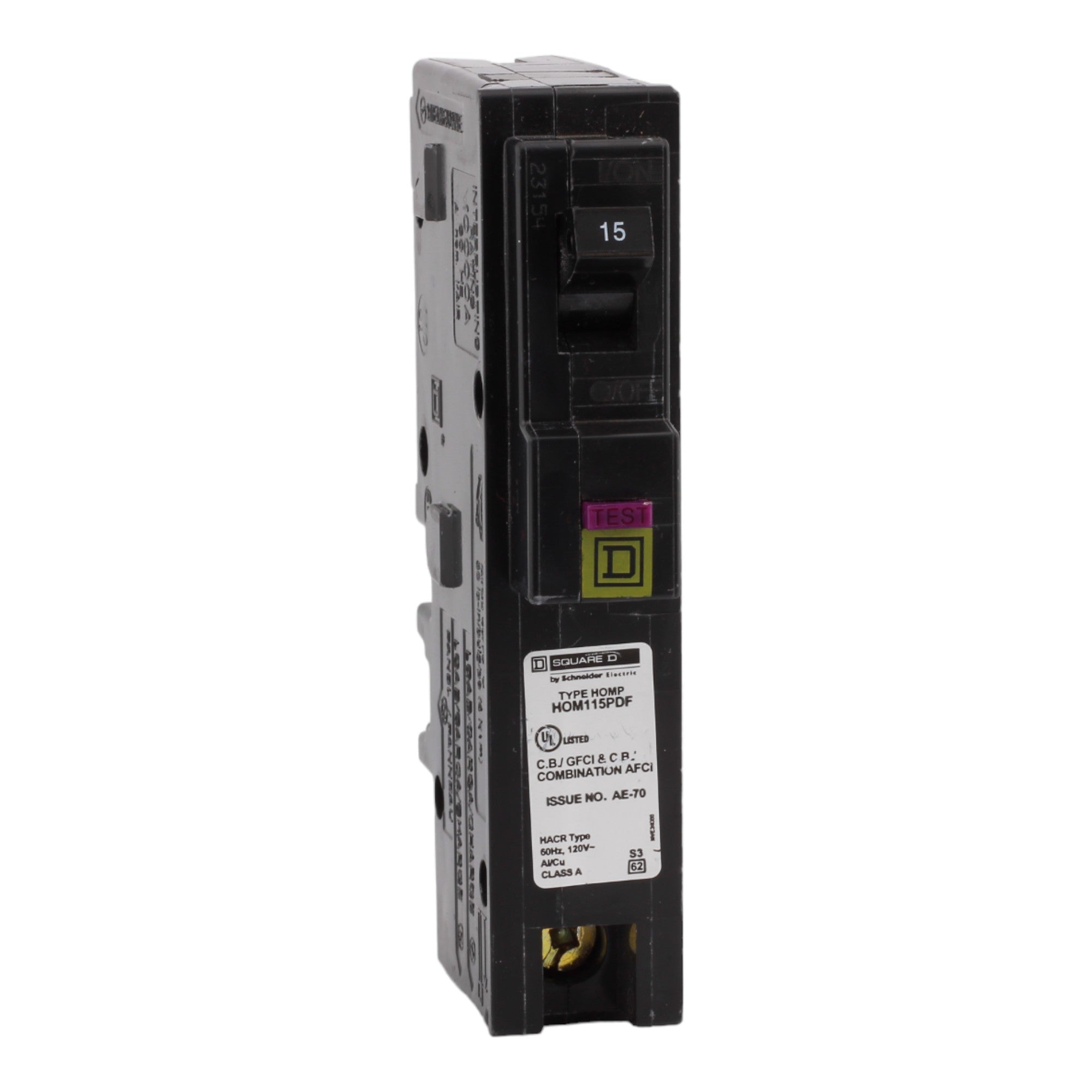

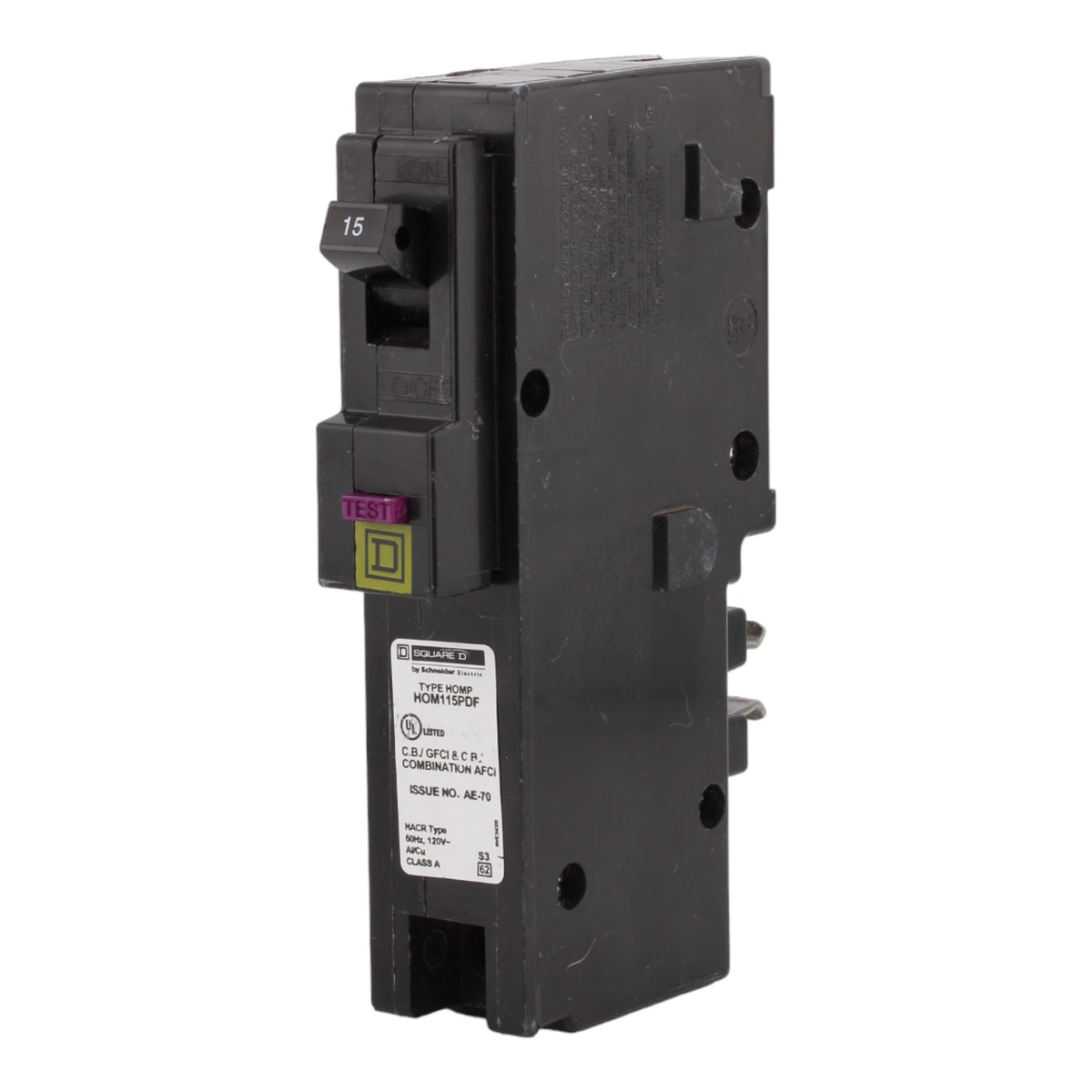

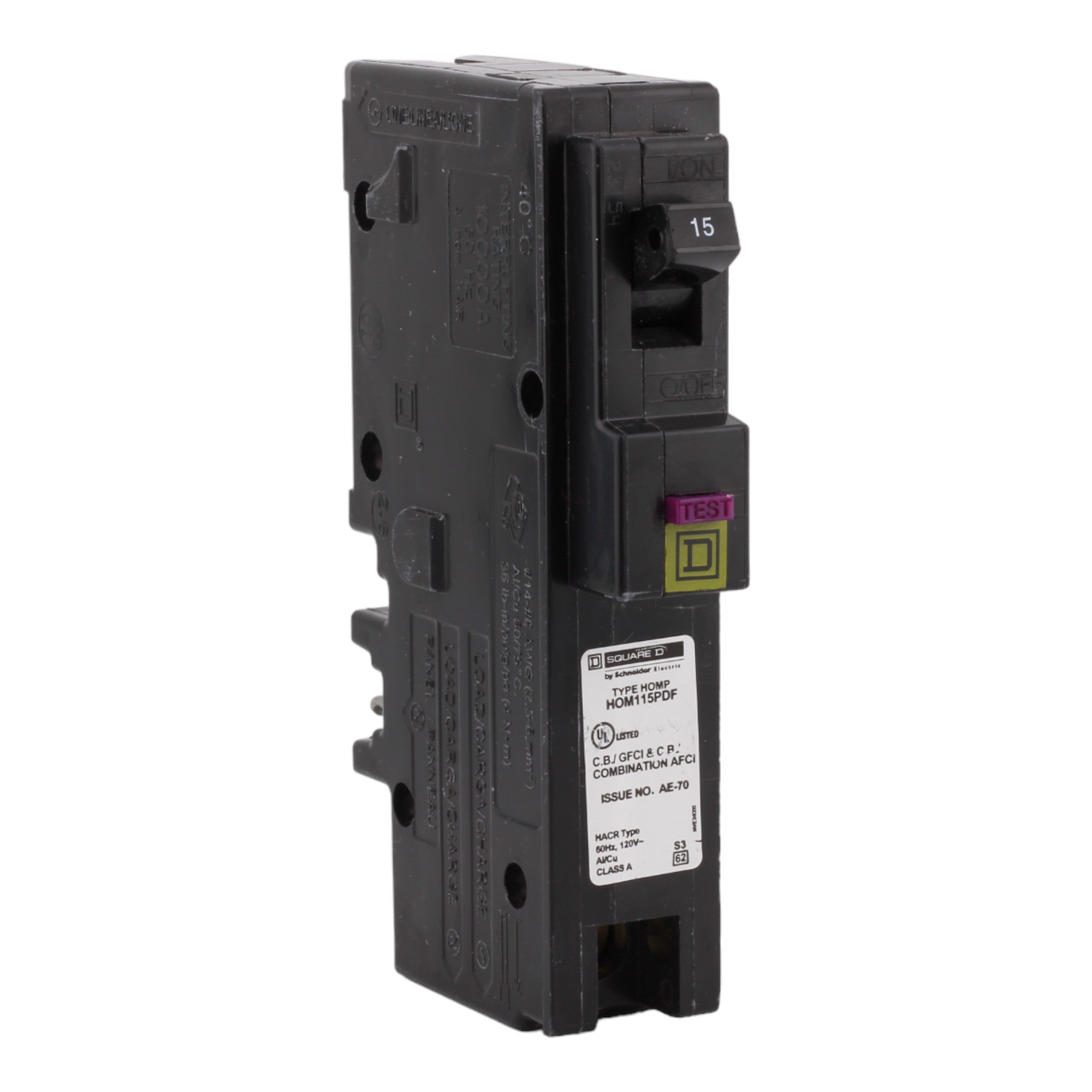

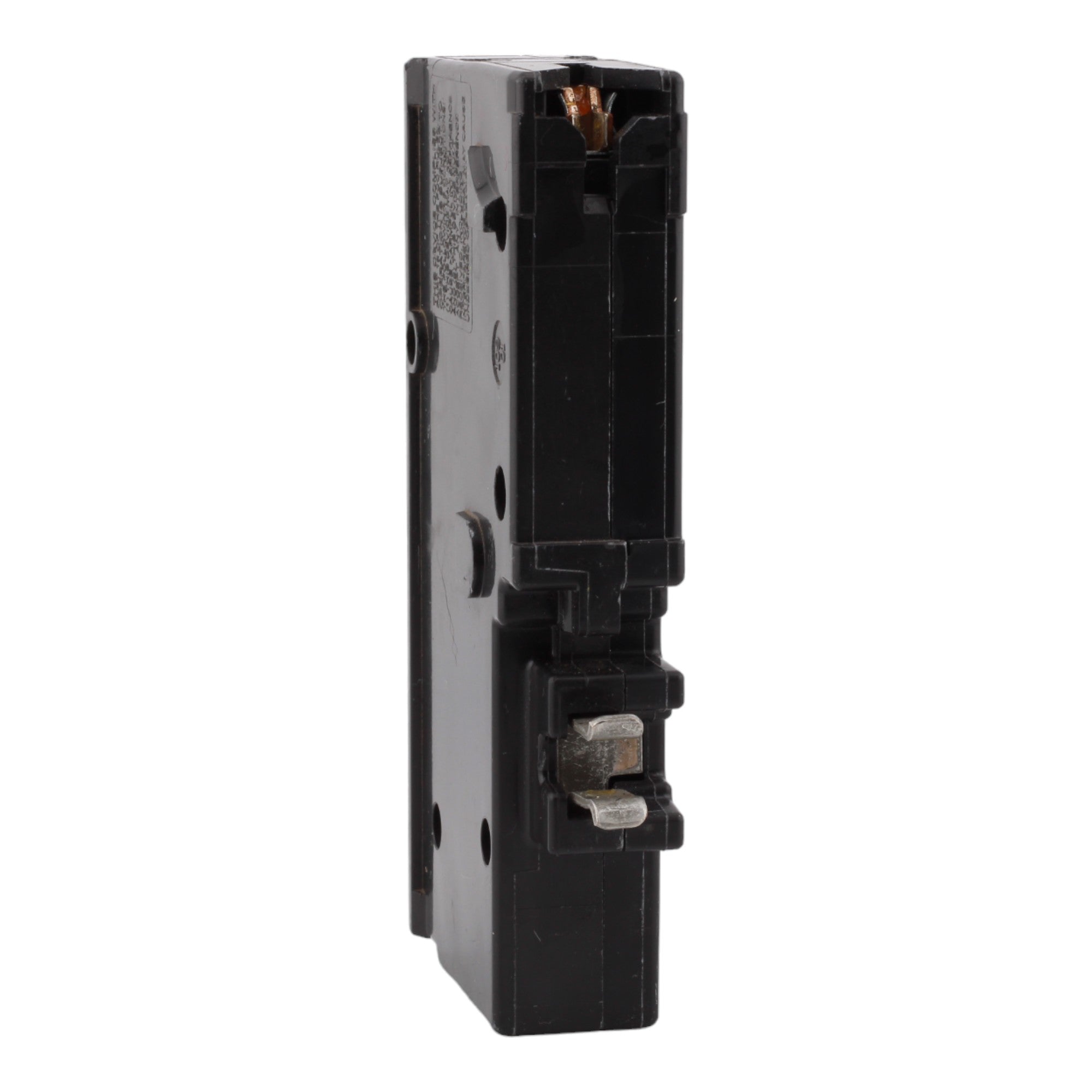

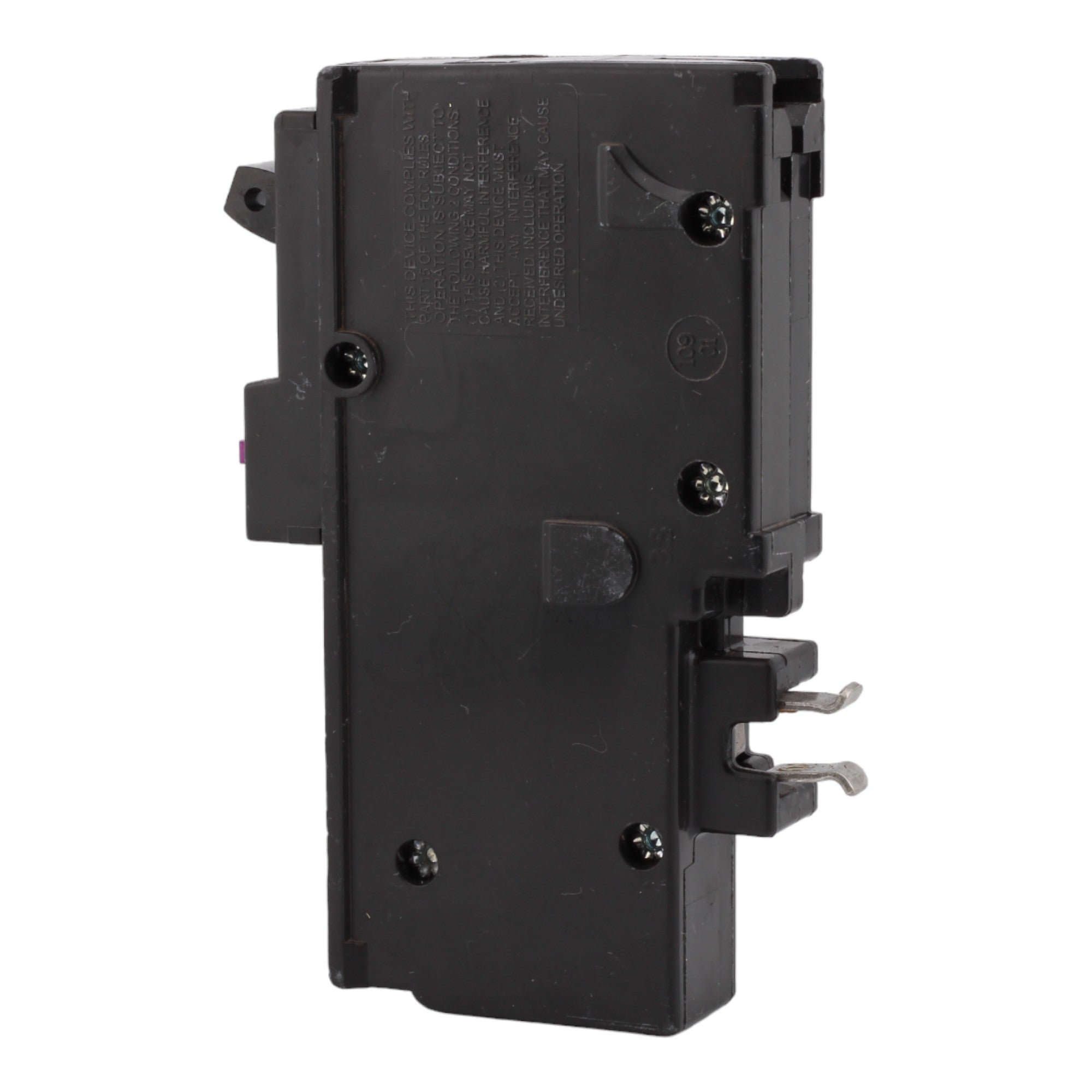

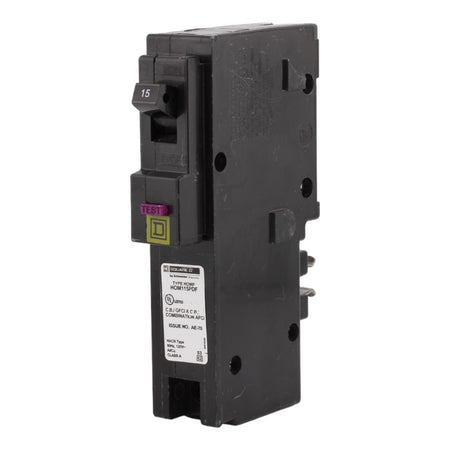

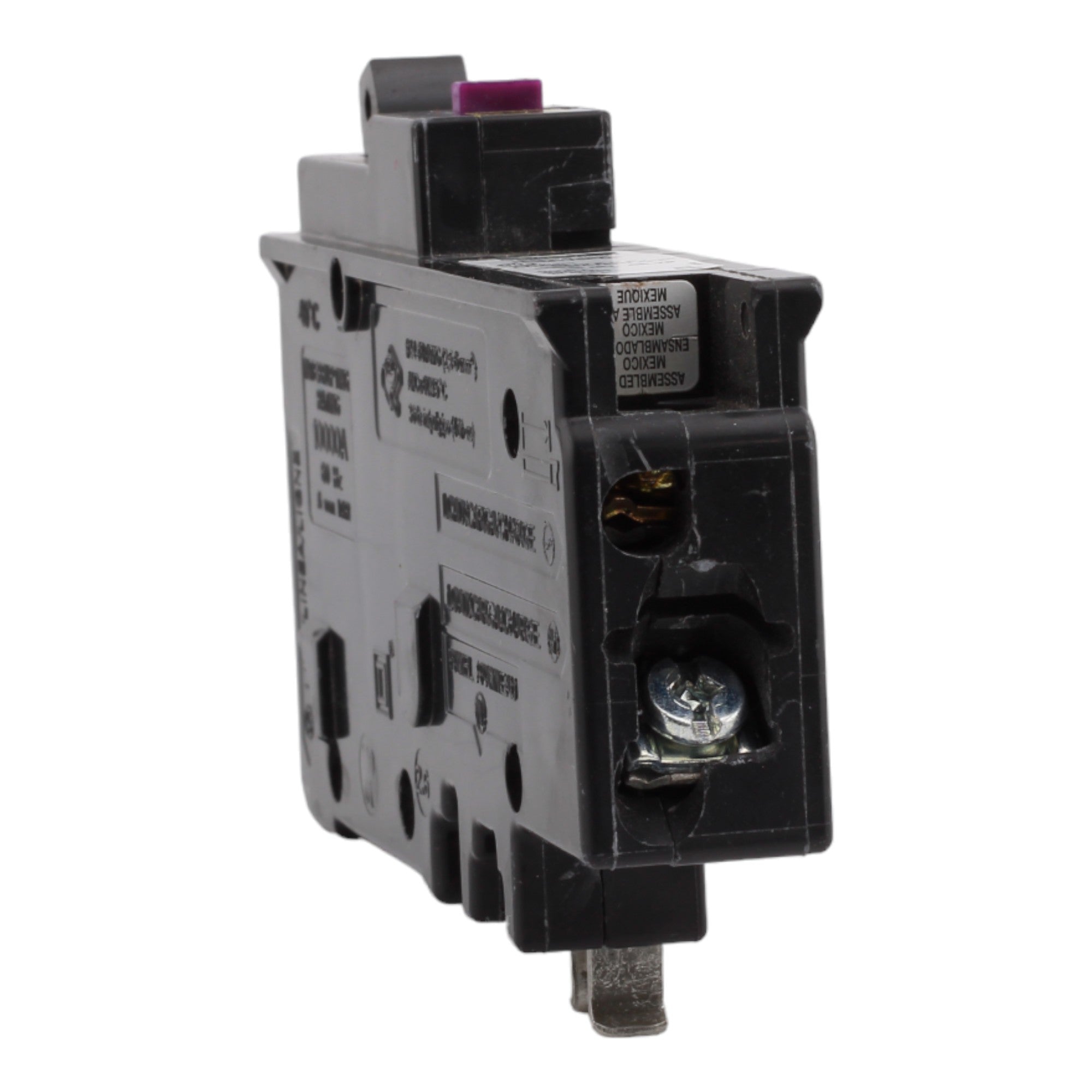

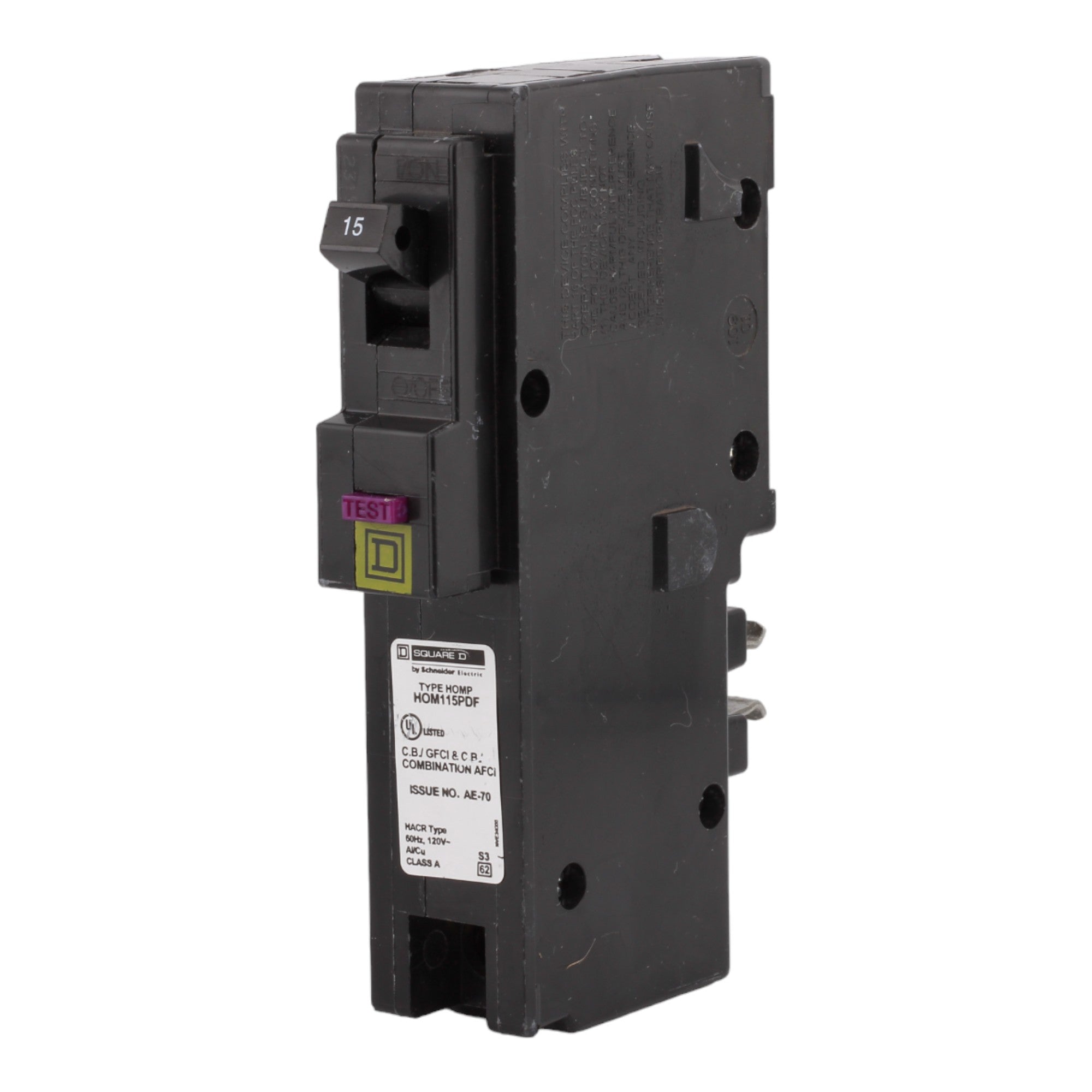

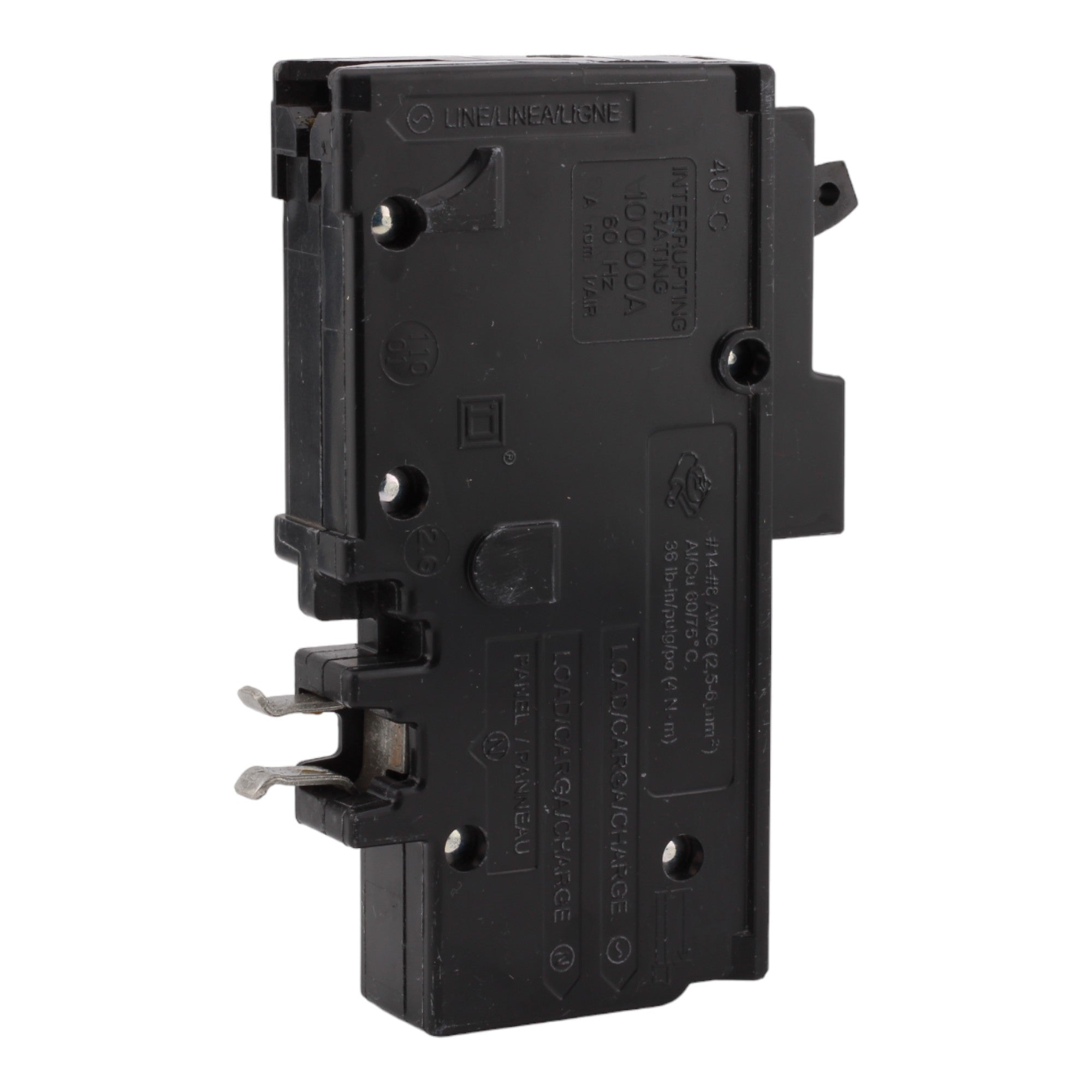

Square D HOM115PDFC, 15A, 120V, 1-Pole, 10kA, Combination Arc-Fault & Ground-Fault Circuit Breaker, Plug-On Neutral, for Homeline Panels
Essential Product Info
■ Brand: Square D
■ Manufacturer: Schneider Electric
■ Model Number: HOM115PDFC
■ UPC Number: 785901978695
■ Type: Miniature Circuit Breaker (MCB), Combination Arc-Fault Circuit Interrupter (AFCI), Ground-Fault Circuit Interrupter (GFCI)
■ Current Rating: 15 Amps (15A)
■ Voltage Rating: 120 Volts AC (120V)
■ Mounting Type: Plug-In
■ Number of Poles: 1 Pole (1P)
■ Short Circuit Current Rating (SCCR): 10,000 Amps (10kA AIR)
■ Circuit Breaker Type: Combination Arc-Fault & Ground-Fault Circuit Interrupter (AFCI/GFCI)
■ Ground Fault Protection: Class A, 6mA Ground Fault Protection
■ Compatibility: Homeline Load Centers, Subpanels
■ Electrical Connection: Screw Clamp Terminals
■ Wire Size Range:
- 1 × AWG 14 - AWG 8 (Copper/Aluminum)
- 2 × AWG 14 - AWG 10 (Copper)
■ Terminal Type: Plug-On Neutral (PoN)
■ Tightening Torque: 35.4 lbf.in (4.0 N.m)
■ Dimensions (H × W × D): 3.13 × 1.00 × 2.98 inches
■ Weight: 0.66 pounds (lbs)
■ Certifications: UL Listed, HACR Rated
■ Safety Compliance: UL1699, UL943, NEC 210.12, NEC 210.8
Key Features and Benefits
✔ Dual Protection Technology: Combines Arc-Fault Circuit Interrupter (AFCI) and Ground-Fault Circuit Interrupter (GFCI) in one device for enhanced electrical safety.
✔ Advanced Fire & Shock Prevention: Detects and mitigates dangerous electrical arcs while protecting against ground faults greater than 6mA.
✔ Plug-On Neutral Breaker (PoN): No pigtail wiring required, making installation faster, cleaner, and more efficient.
✔ 10,000 Amps (10kA AIR) Interrupting Rating: Ensures high-performance short-circuit and overload protection.
✔ Clamp Terminal for 2 Wires: Provides more flexibility for multiple conductor connections.
✔ Space-Saving 1-Inch Width: Optimized for compact installation in Homeline Load Centers and Subpanels.
✔ UL Listed & NEC Compliant: Meets UL1699, UL943, NEC 210.12, and NEC 210.8 standards, ensuring code compliance.
Applications
✔ Residential Electrical Protection: Ideal for bedrooms, living rooms, kitchens, and bathrooms, ensuring compliance with NEC arc-fault and ground-fault protection requirements.
✔ Commercial Installations: Perfect for offices, small businesses, and retail spaces needing dual AFCI/GFCI protection.
✔ Load Centers & Subpanels: Specifically designed for Homeline Load Centers and CSEDs, providing comprehensive circuit protection.
Why Choose Schneider Electric?
Schneider Electric’s Square D brand is a global leader in electrical protection, safety, and energy management. The HOM115PDFC offers cutting-edge dual-function AFCI/GFCI protection, plug-on neutral technology, and NEC compliance, making it the best choice for both residential and commercial applications.
🔹 Upgrade your panel with the Square D HOM115PDFC today! 🔹
New Condition
- Products in new condition are unused and in their original state.
- Backed by our 24-month warranty, ensuring reliability and peace of mind.
Reconditioned Condition
- Products in reconditioned condition are previously owned but have been professionally tested and inspected to ensure full functionality.
- May include minor repairs, such as replacing damaged screws, but are not fully refurbished.
- Covered by our 12-month warranty, guaranteeing performance.
