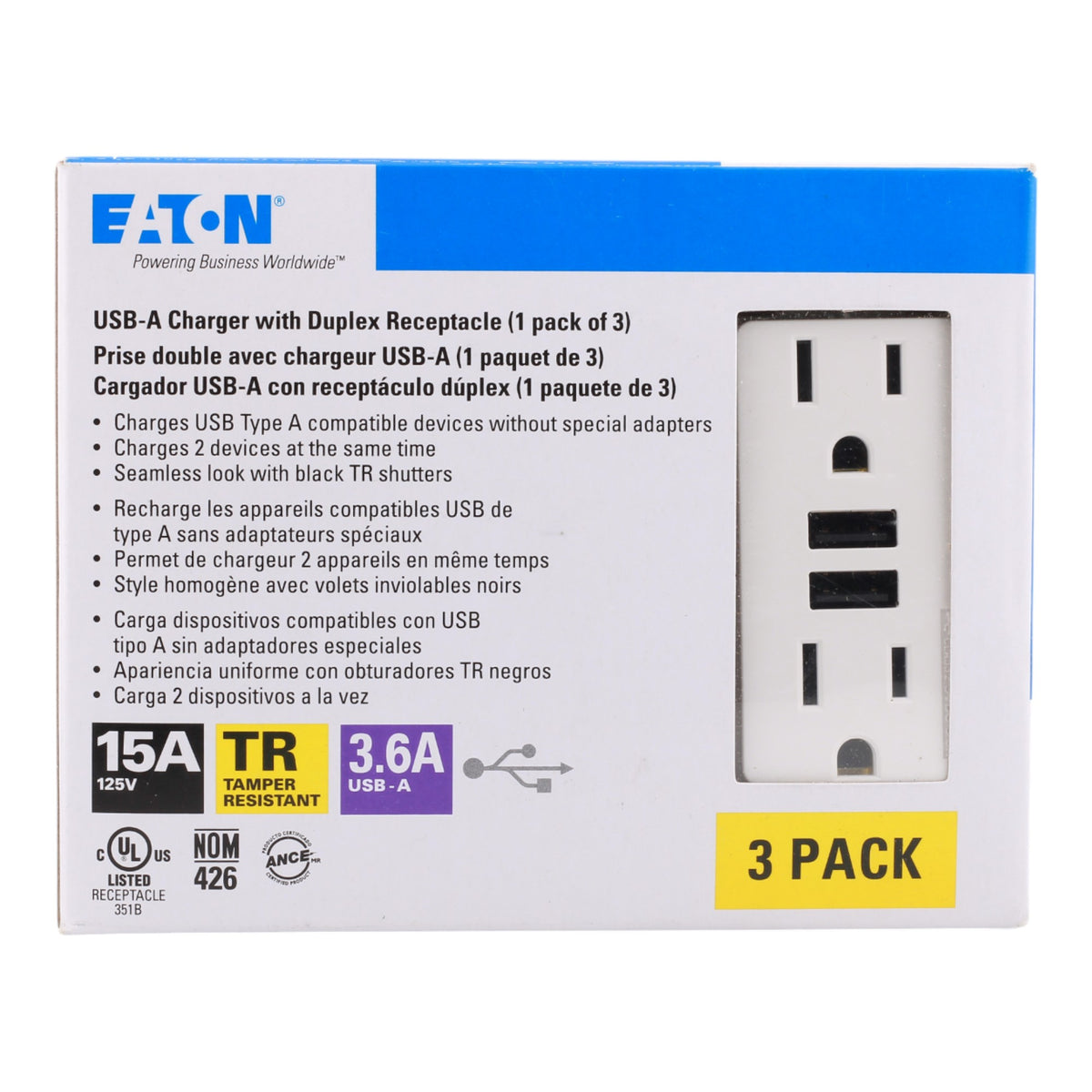

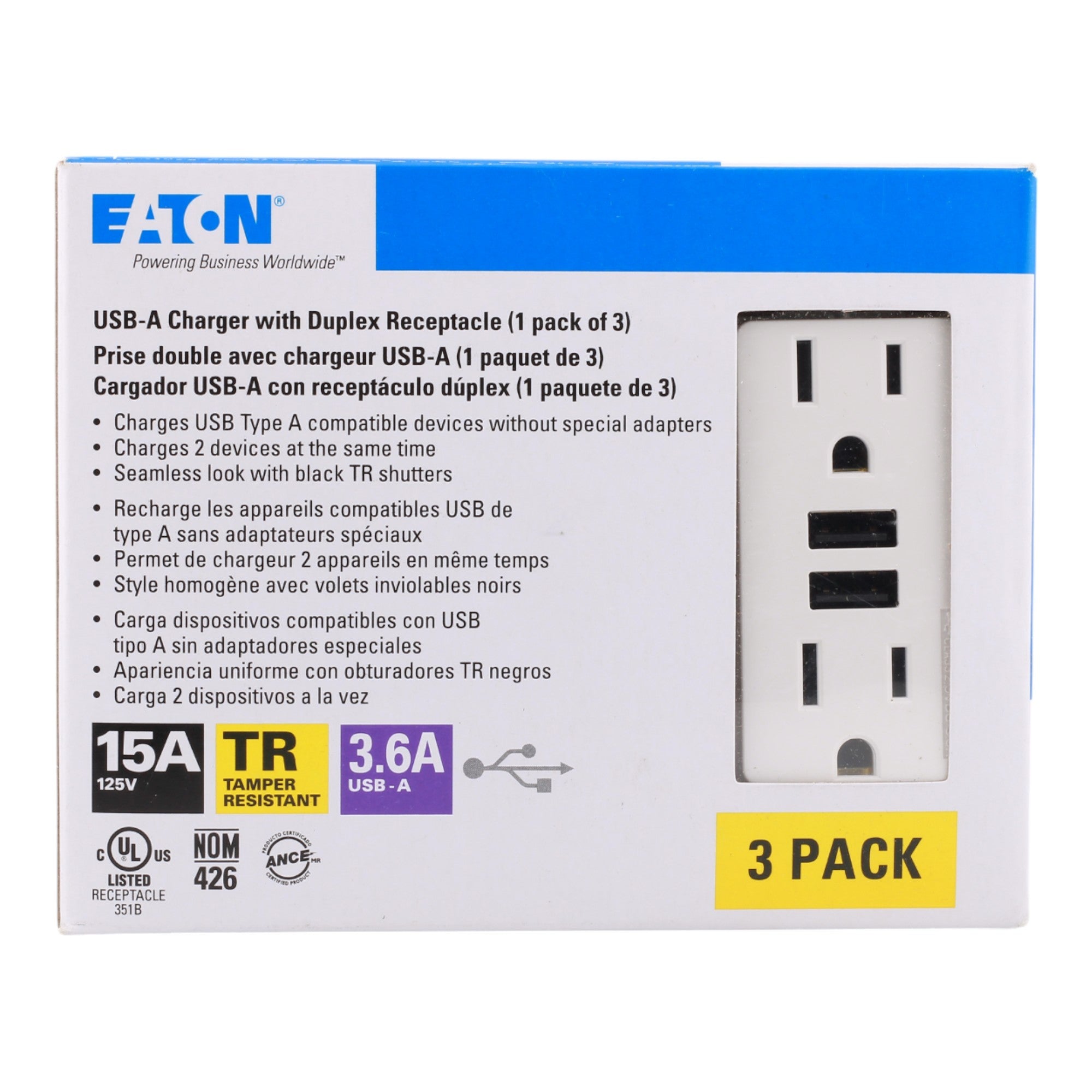

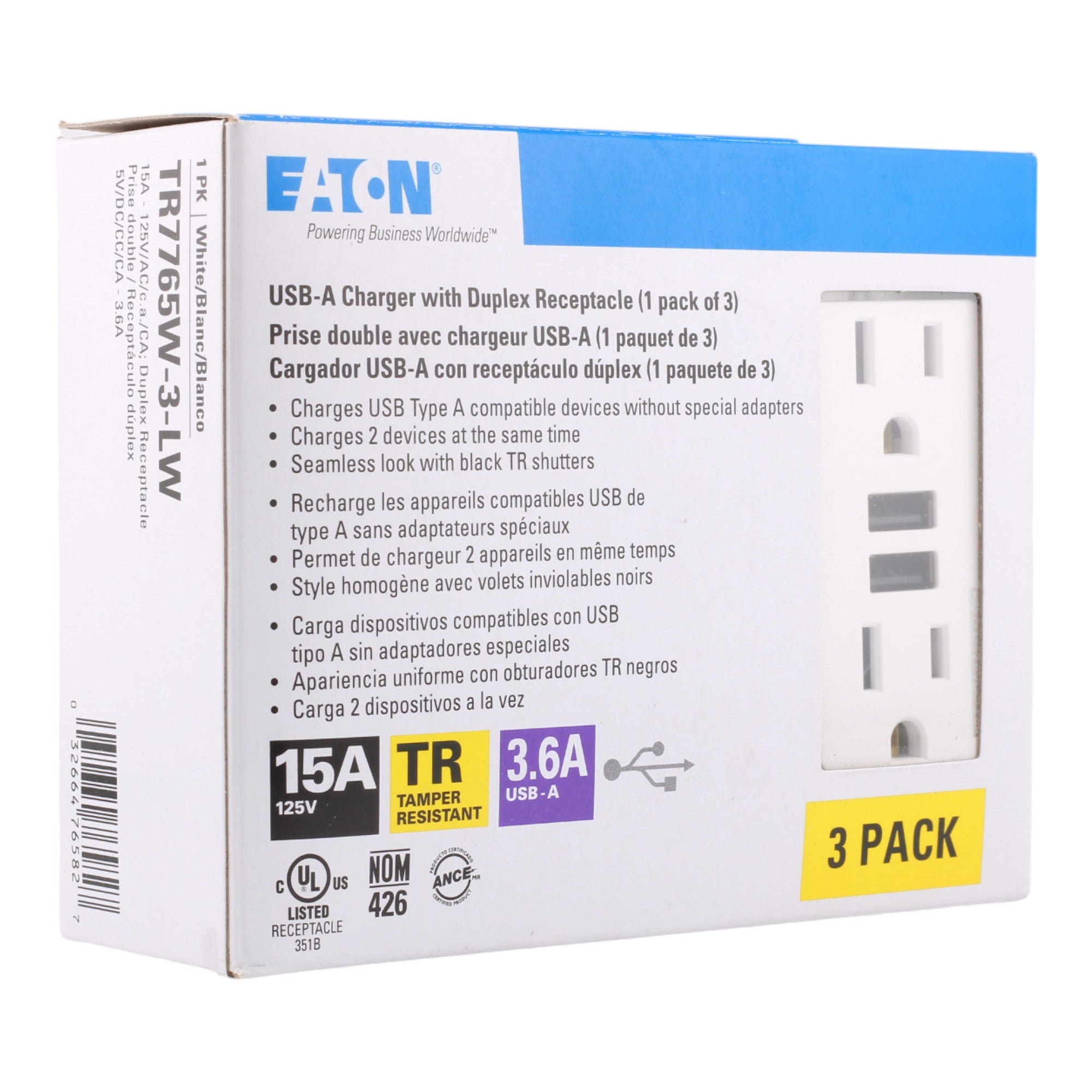

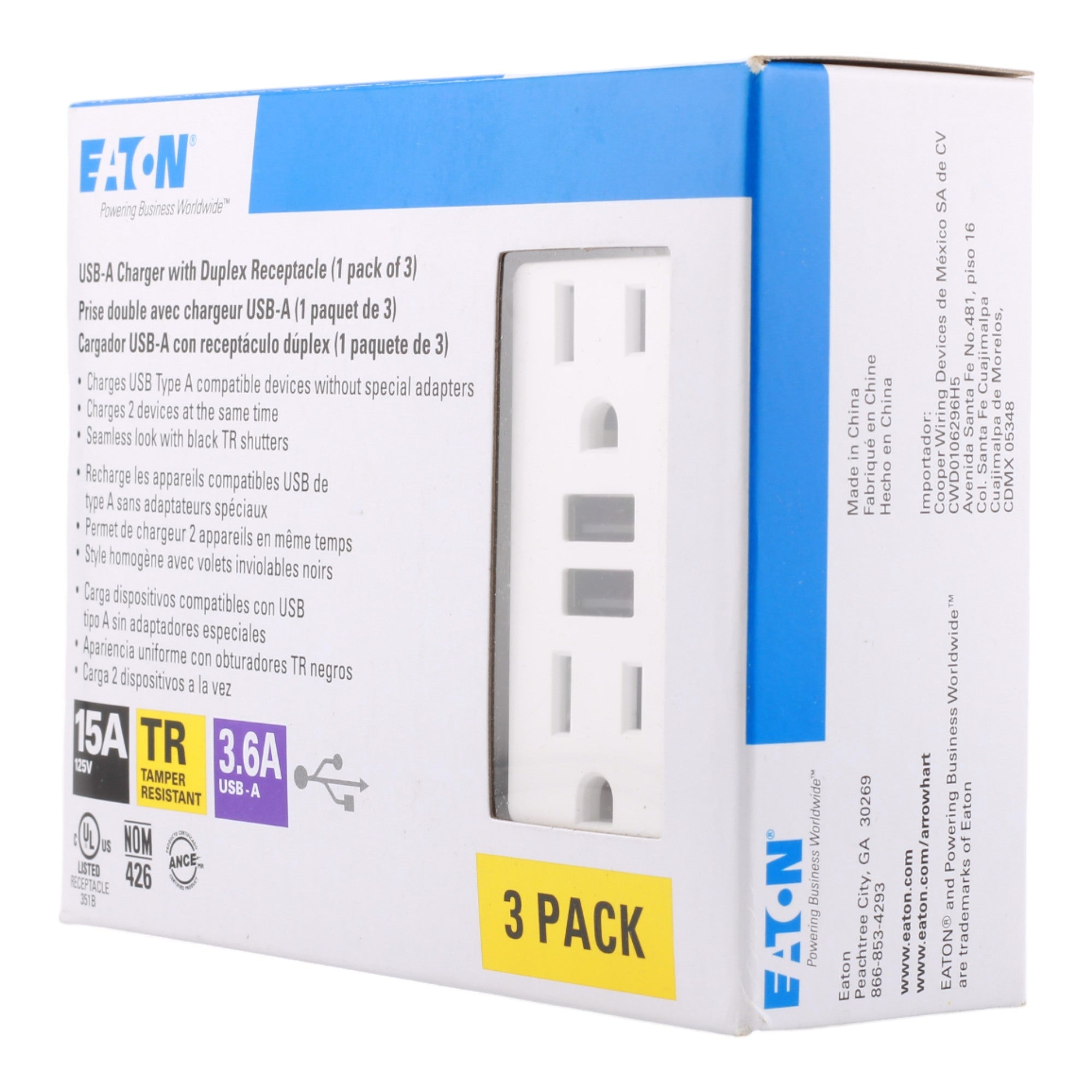

Eaton TR7765W-3-LW 15A 2P 125V USB 3.6A Charger TR Duplex Receptacle

Eaton TR7765W-3-LW: 15A tamper-resistant duplex receptacle with 3.6A USB Type A charging ports, 125V, 2-pole/3-wire grounding, white/light almond faceplate, NEMA 5-15R, decorator style."

Product Specifications

Product Identification:

• Manufacturer: Eaton
• Brand: Eaton
• UPC: 032664765827
• Model Number: TR7765W-3-LW

Technical Specifications:

• Receptacle Type: Combination USB Charger with Tamper-Resistant Duplex Receptacle
• Number of Poles: 2-Pole, 3-Wire grounding
• Amperage Rating: 15A
• Voltage Rating: 125V
• USB Type: Type A
• USB Charging Capacity: 3.6A
• NEMA Configuration: 5-15R
• Wiring Method: Screw terminals
• Allowable Wire Size: #12-14 AWG
• Torque Rating: 14 lbf-inch
• Mounting Method: Flush
• Contact Material: Brass
• Style: Decorator
• Colors: White/Light Almond
• Material: Thermoplastic
• Features: Tamper-resistant, 3.6A USB charging
• Certifications: cULus Listed, NOM

Dimensions:

• Dimensions: Height: 4.19 in; Width: 1.3 in; Depth: 1.4 in
• Weight: 0.793 lb
