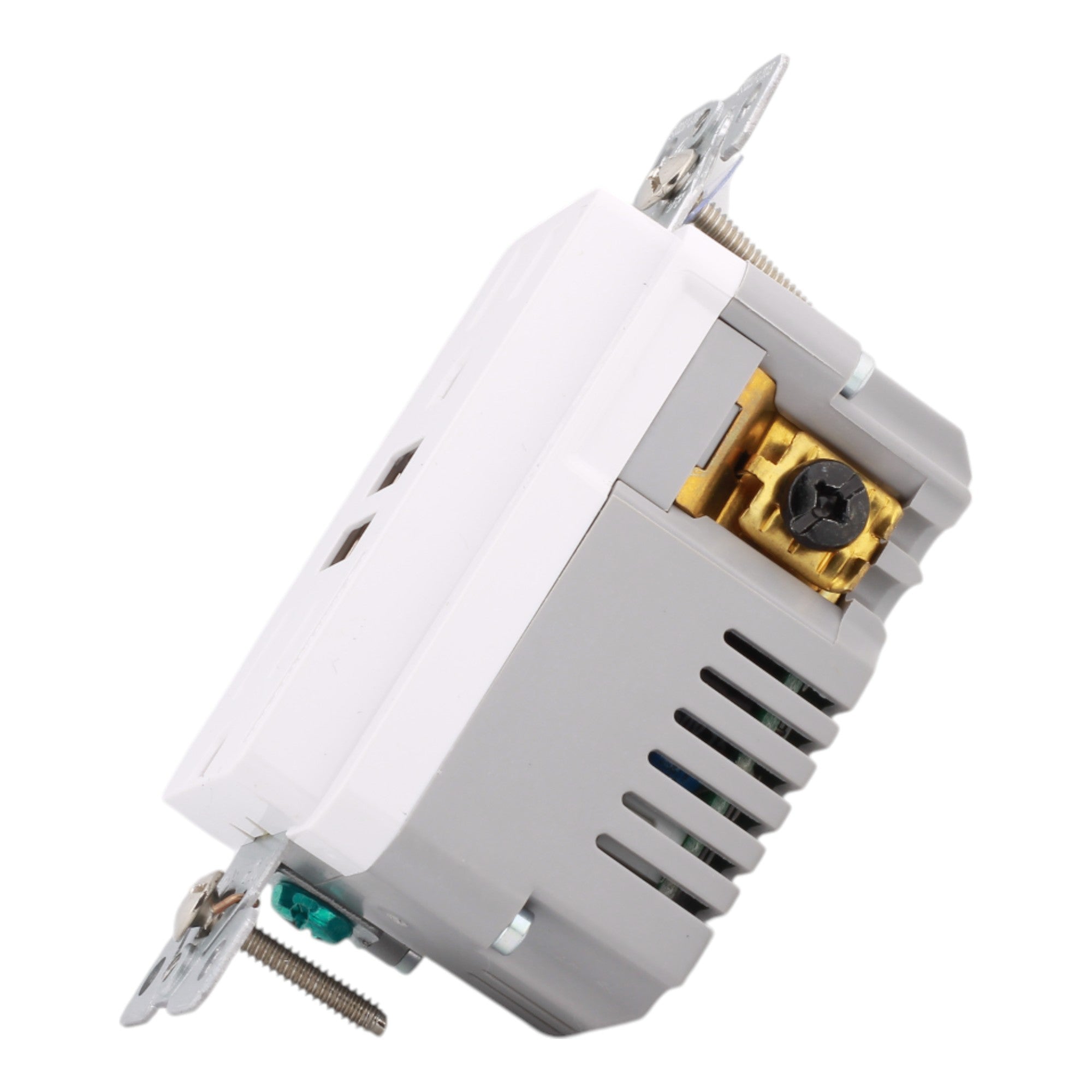

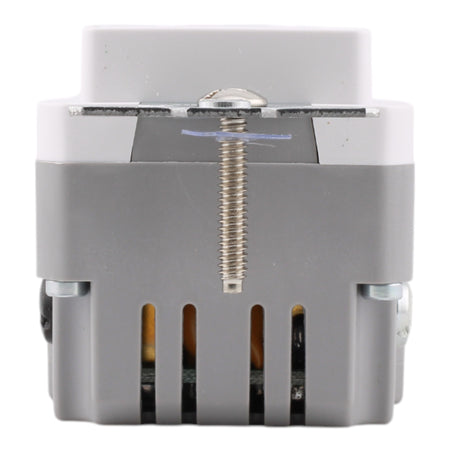

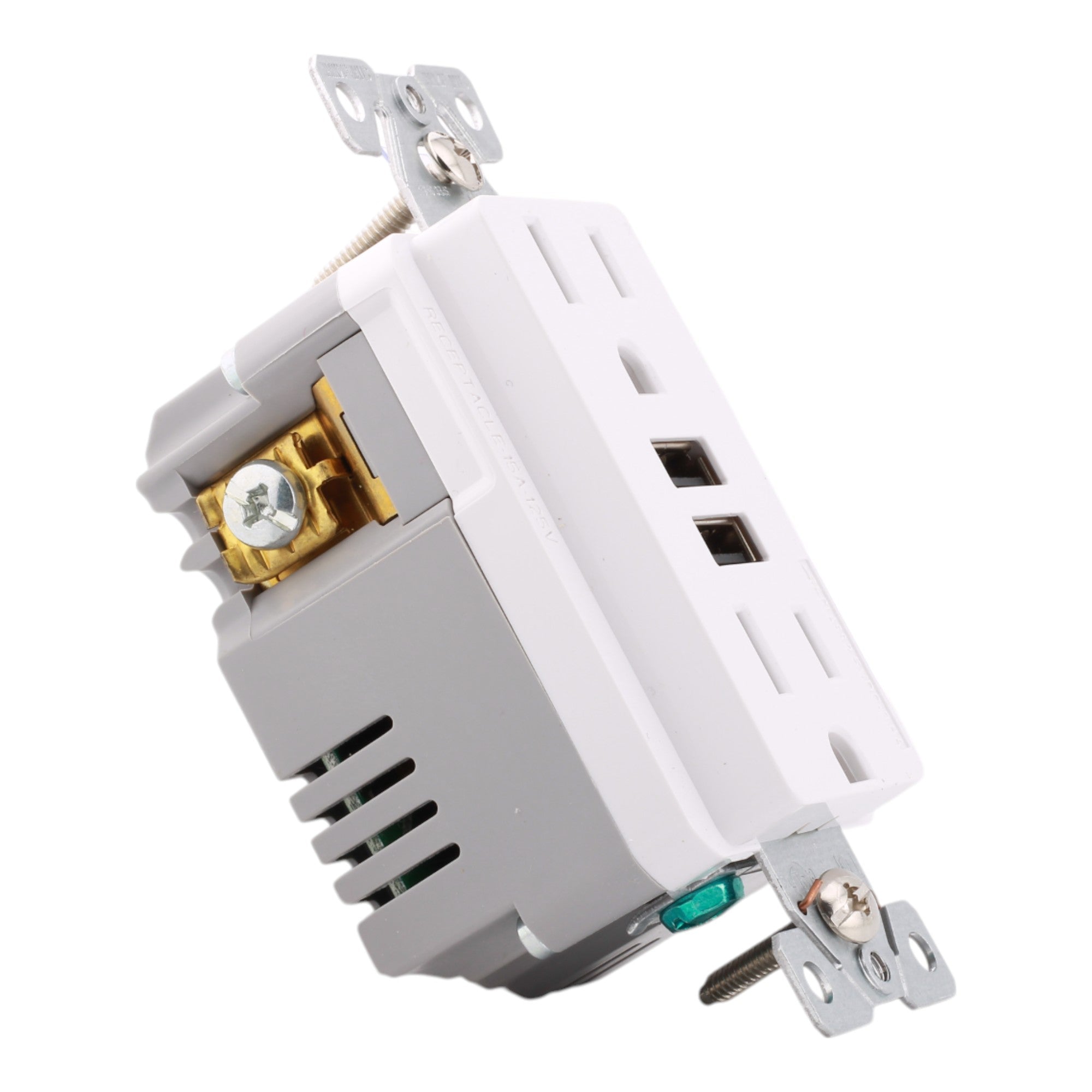

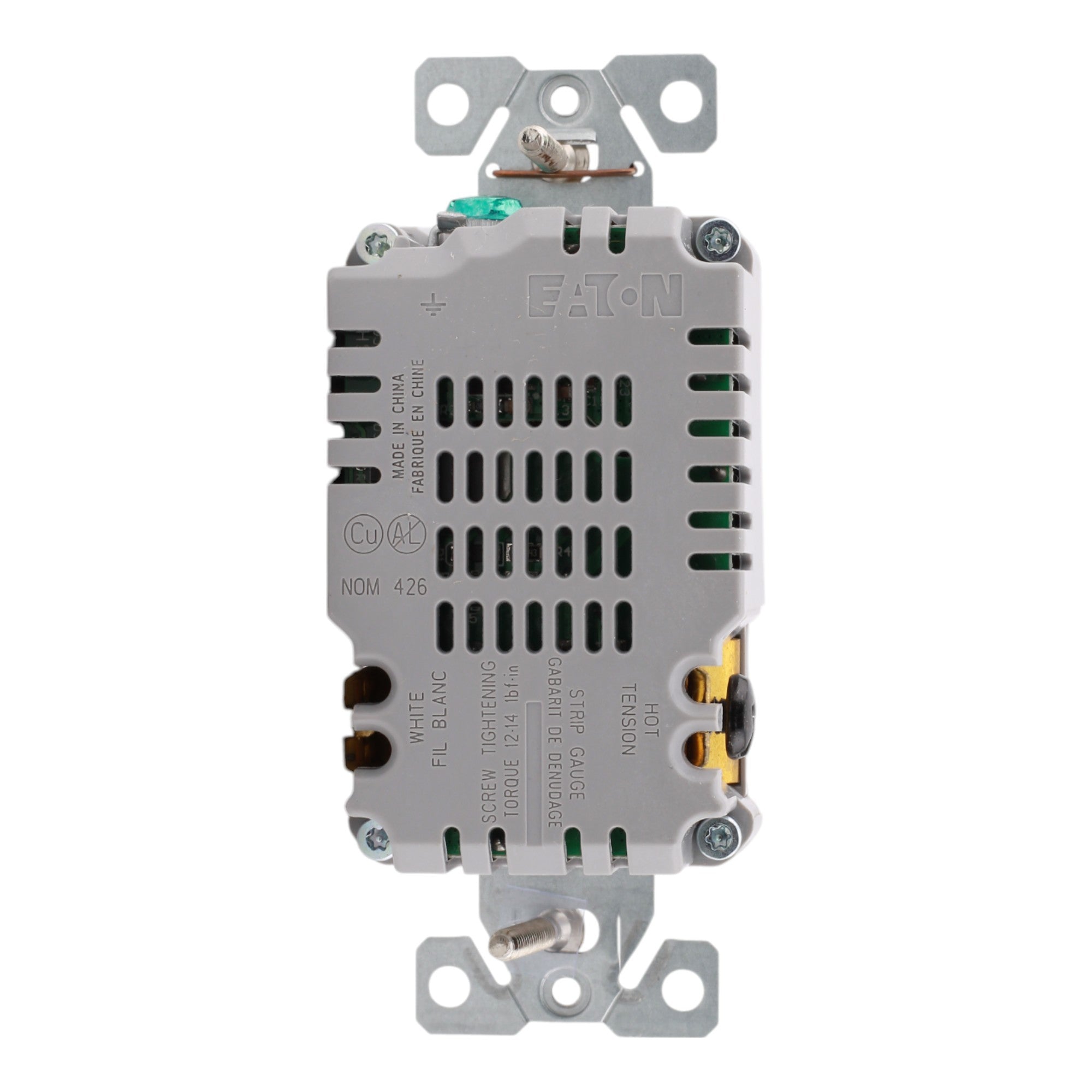

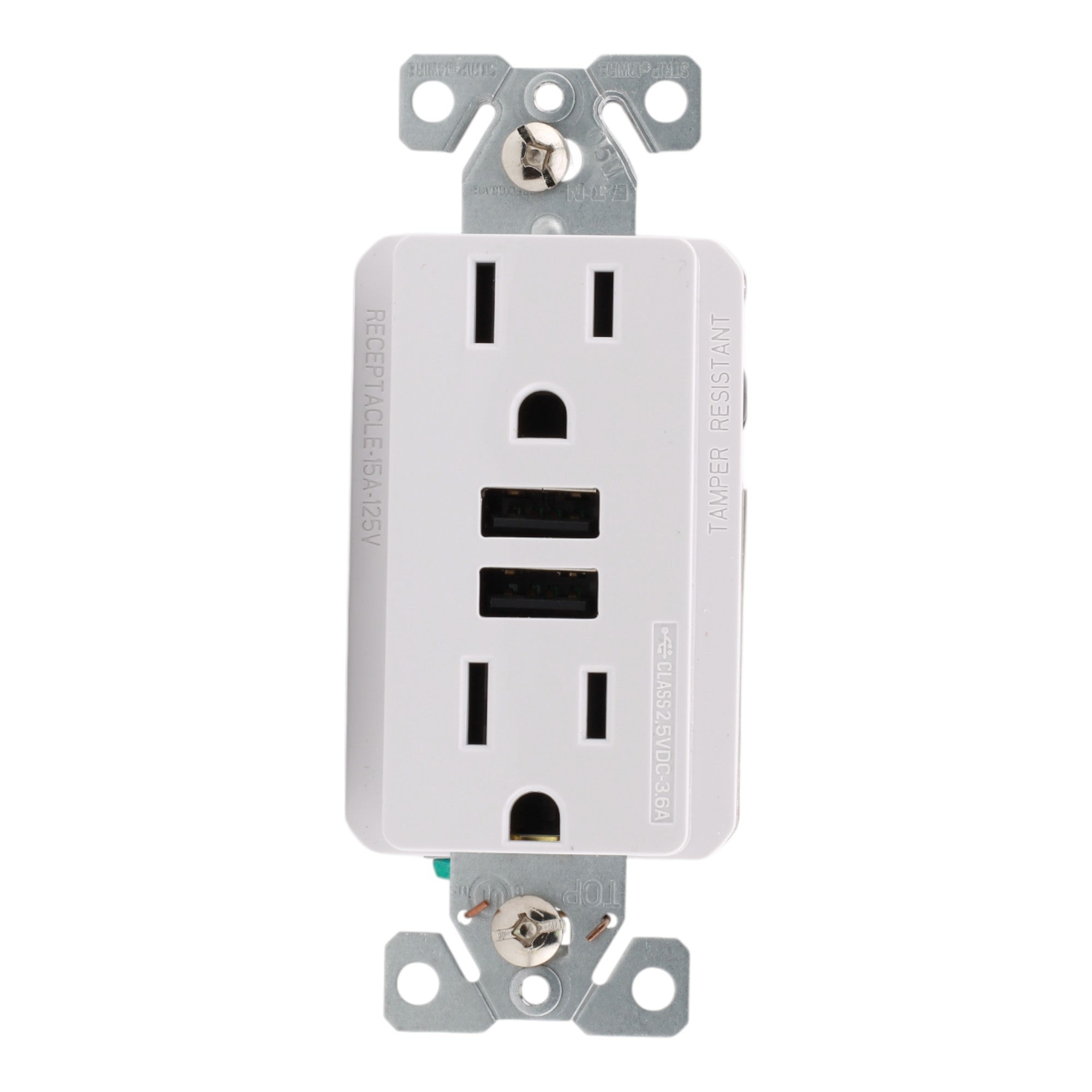

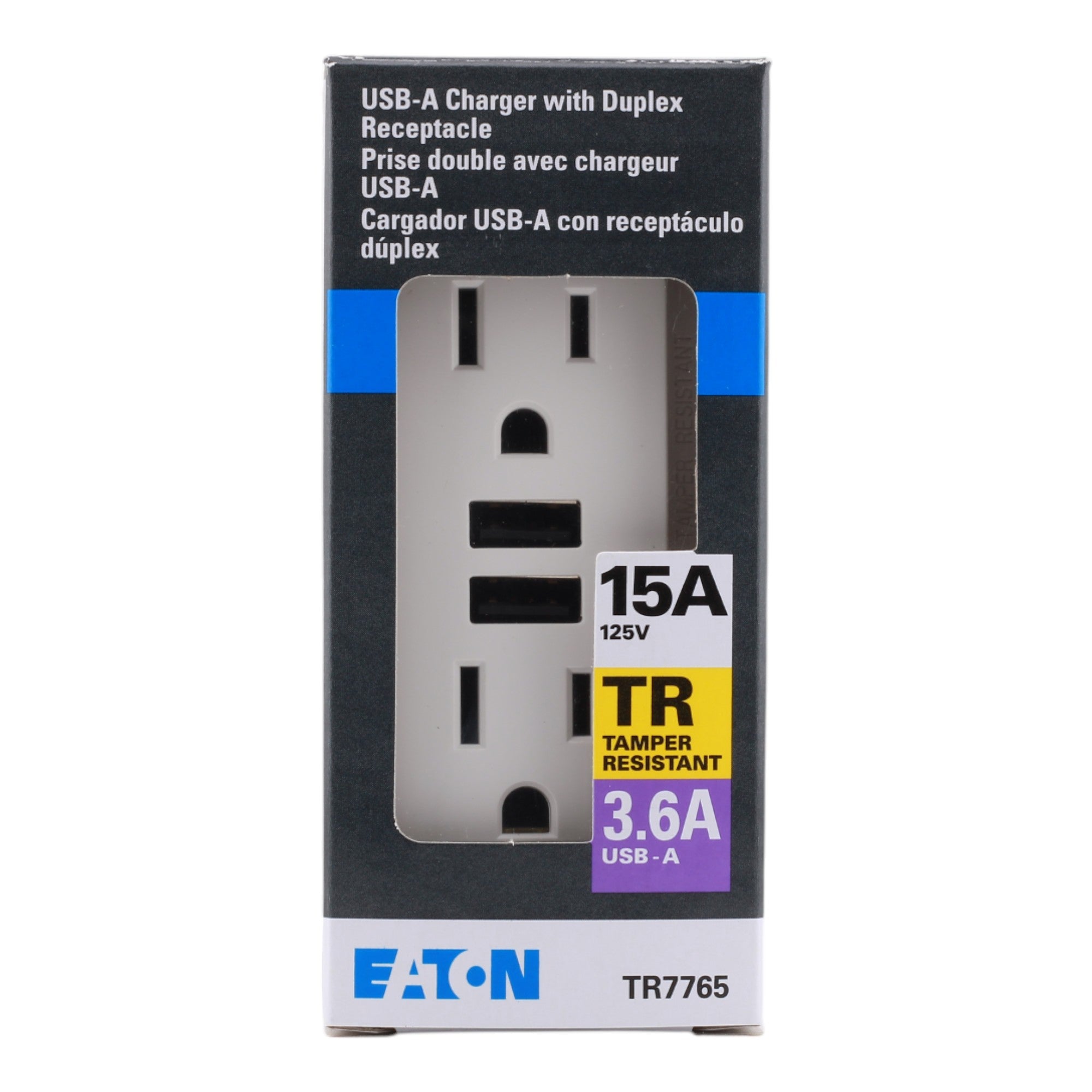

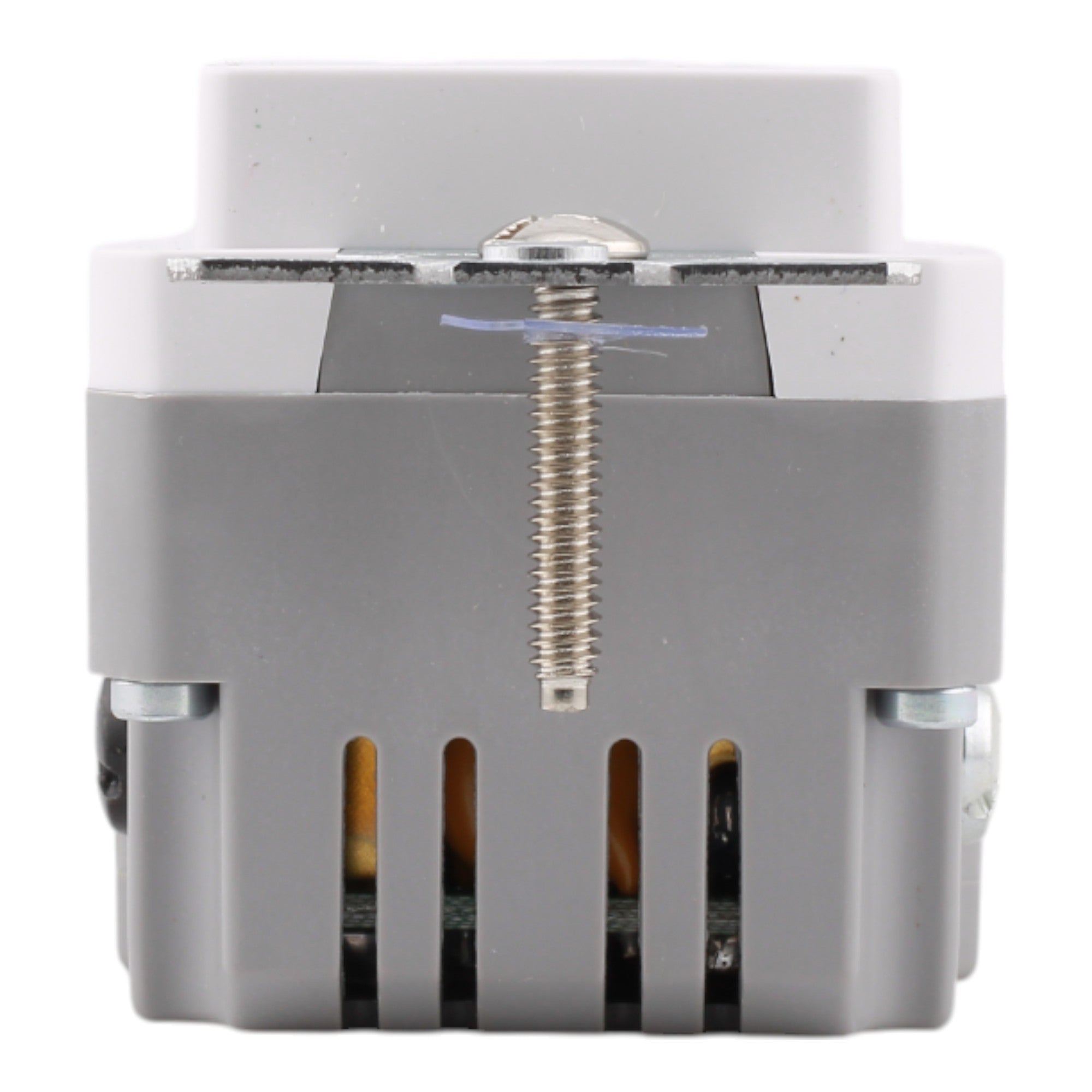

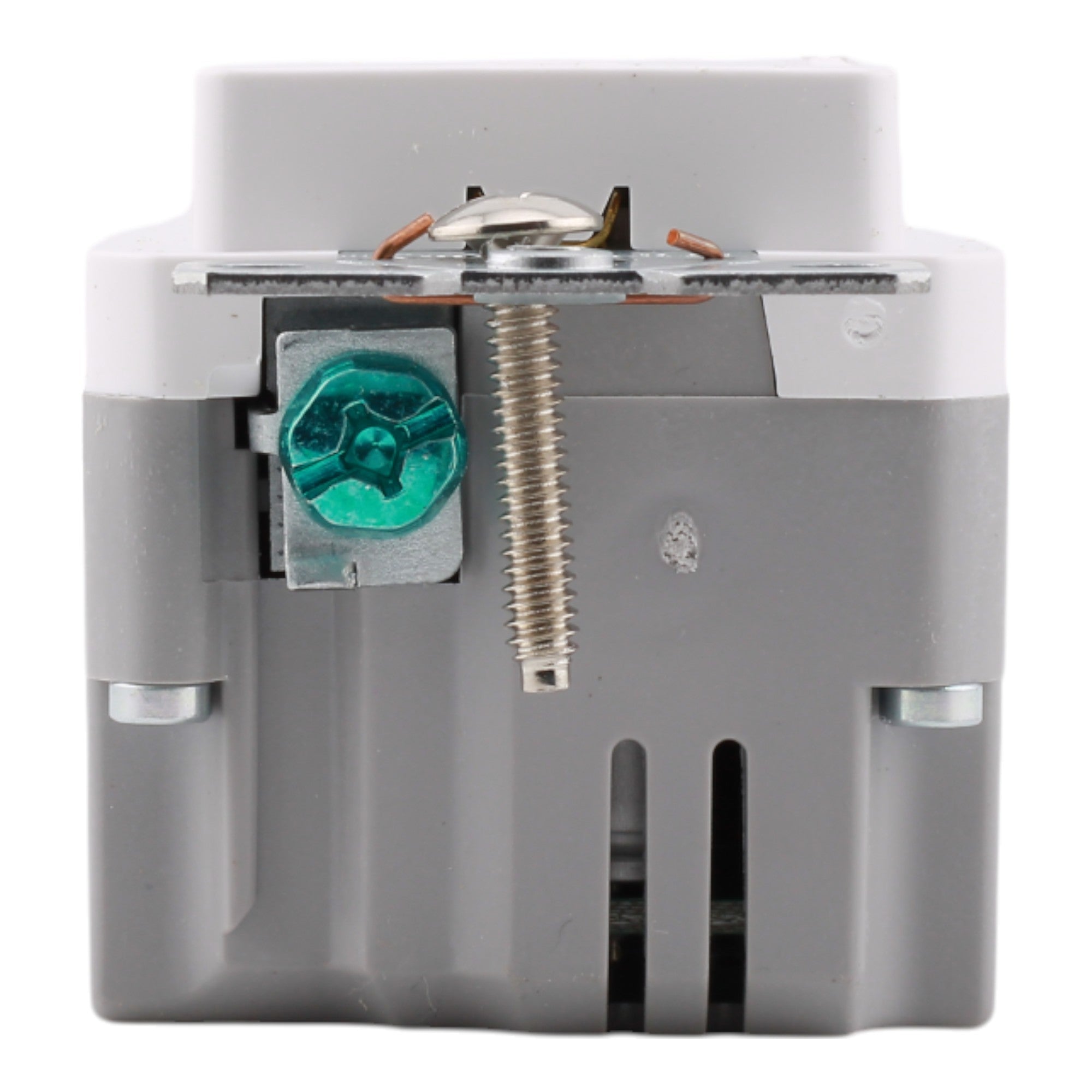

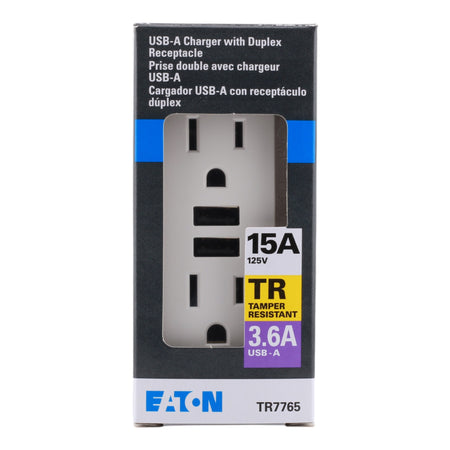

Eaton TR7765 15A USB 3.6A Charger TR Duplex Receptacle

Eaton TR7765: 15A tamper-resistant duplex receptacle with 3.6A USB charger, 125VAC, 5VDC, dual USB ports, NEMA 5-15R/5-20R, built-in wire strippers, UL listed, available in multiple colors."

Product Specifications

Product Identification:

• Manufacturer: Eaton
• Brand: Eaton
• UPC: 032664767029
• Model Number: TR7765

Technical Specifications:

• Receptacle Type: Combination USB Charger with Tamper-Resistant Duplex Receptacle
• Number of Poles: 2-Pole, 3-Wire grounding
• Amperage Rating: TR7765: 15A
• Voltage Rating: 125VAC
• USB Output: 5VDC, 3.6A total charging capacity
• NEMA Configuration: TR7765: 5-15R
• Wiring Type: Screw terminals/side and back wire
• Wire Compatibility: TR7765: #14 AWG
• Special Features:
  • Dual USB charging ports
  • Tamper-resistant shutters (2014 NEC Article 406.12 compliant)
  • Automatic grounding system
  • Built-in wire strippers
  • Thermoplastic construction
  • Zinc-plated steel mounting strap
• Certifications: cULus Listed to UL498 and UL1310, NOM
• Available Colors: Brown (B), Black (BK), Gray (GY), Light Almond (LA), Oil-Rubbed Bronze (RB), Silver Granite (SG), Ivory (V), White (W)

Dimensions:

• Dimensions: Standard size receptacle
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
