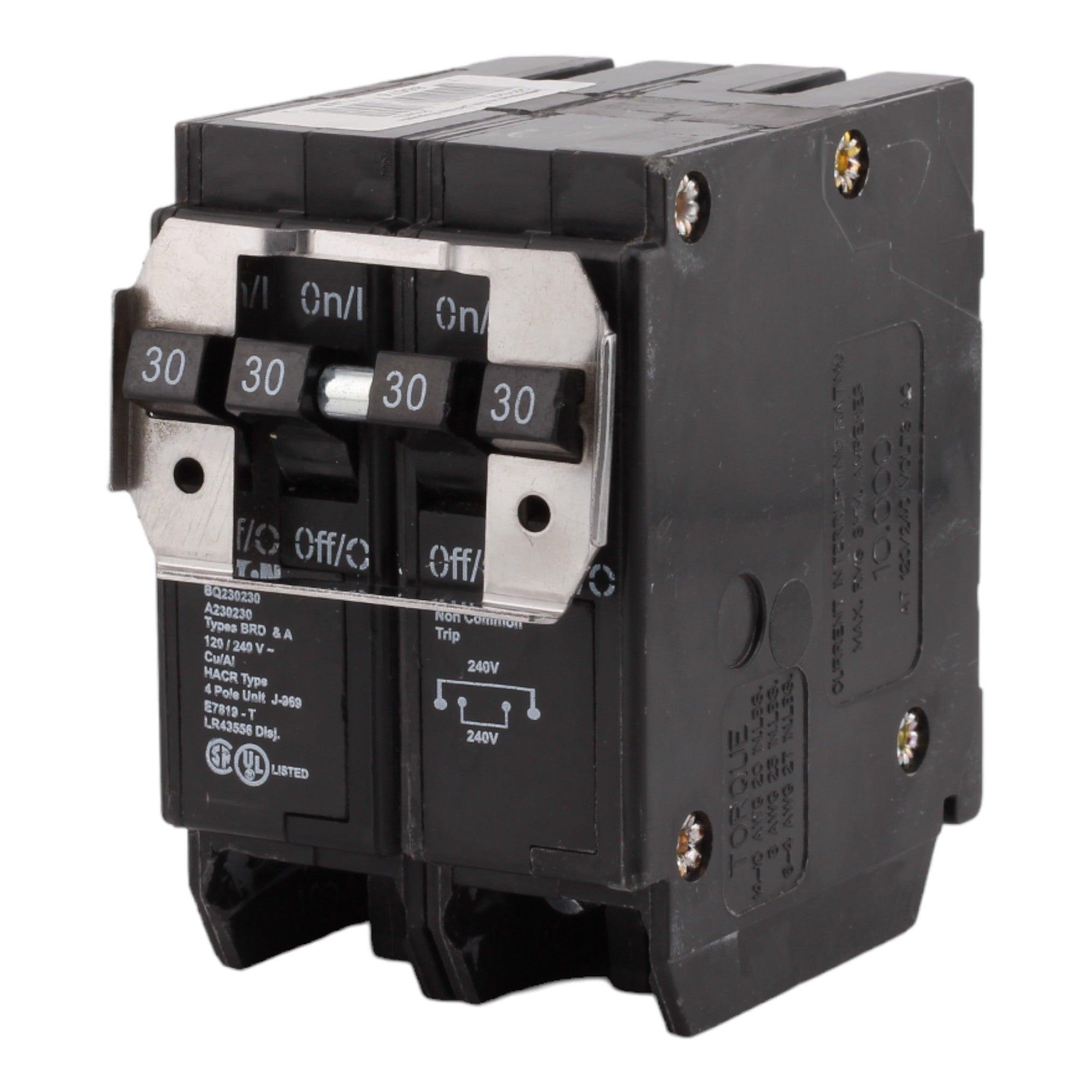

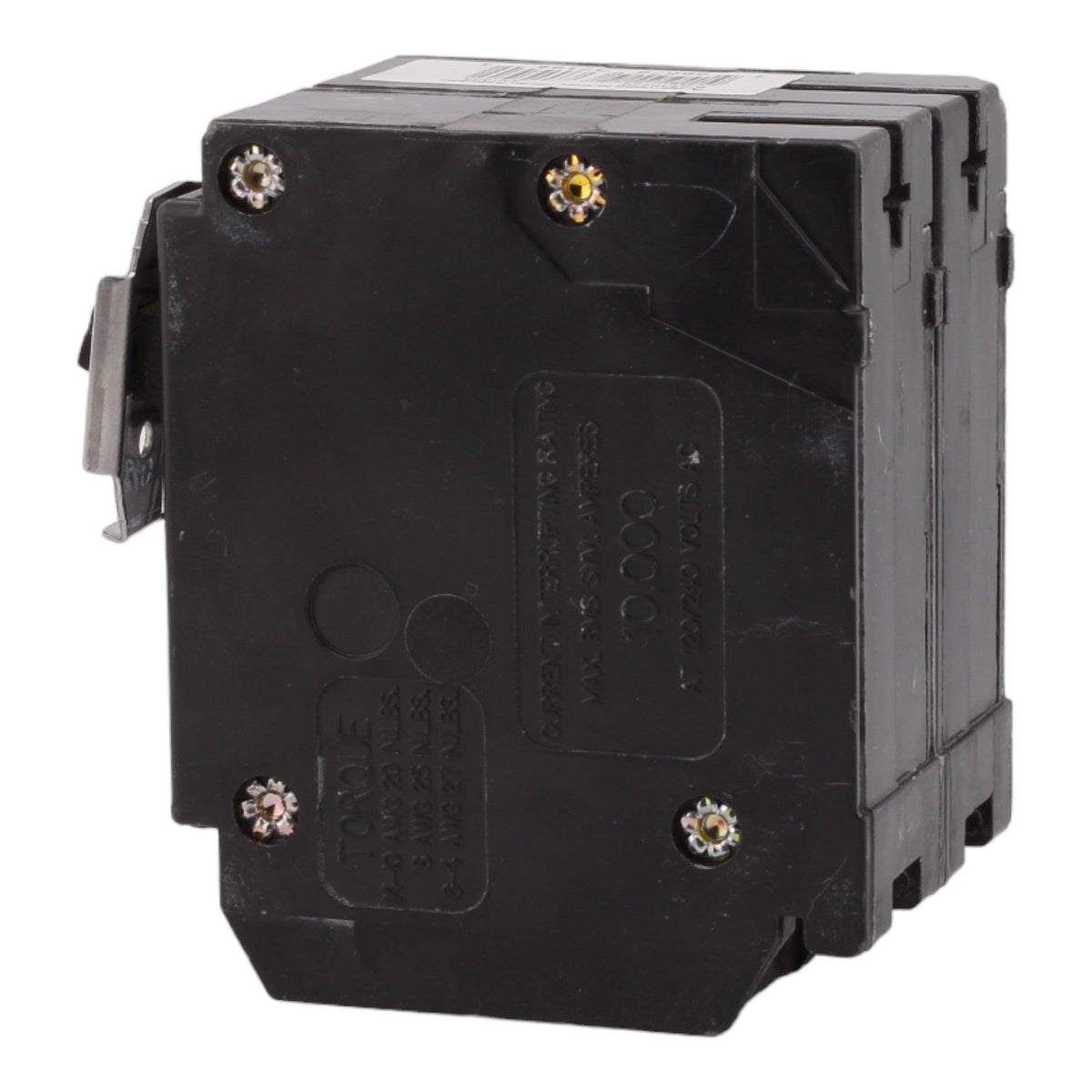

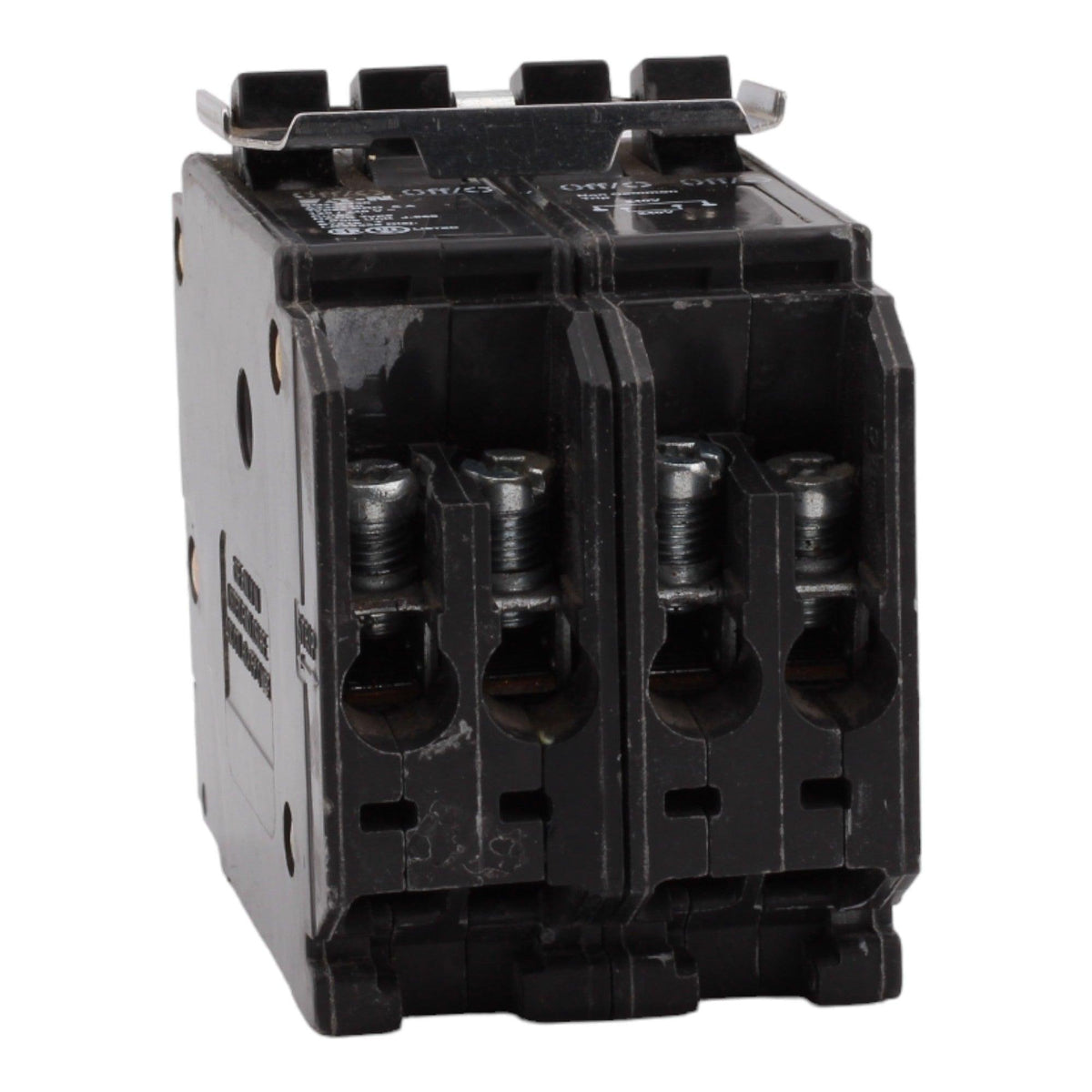

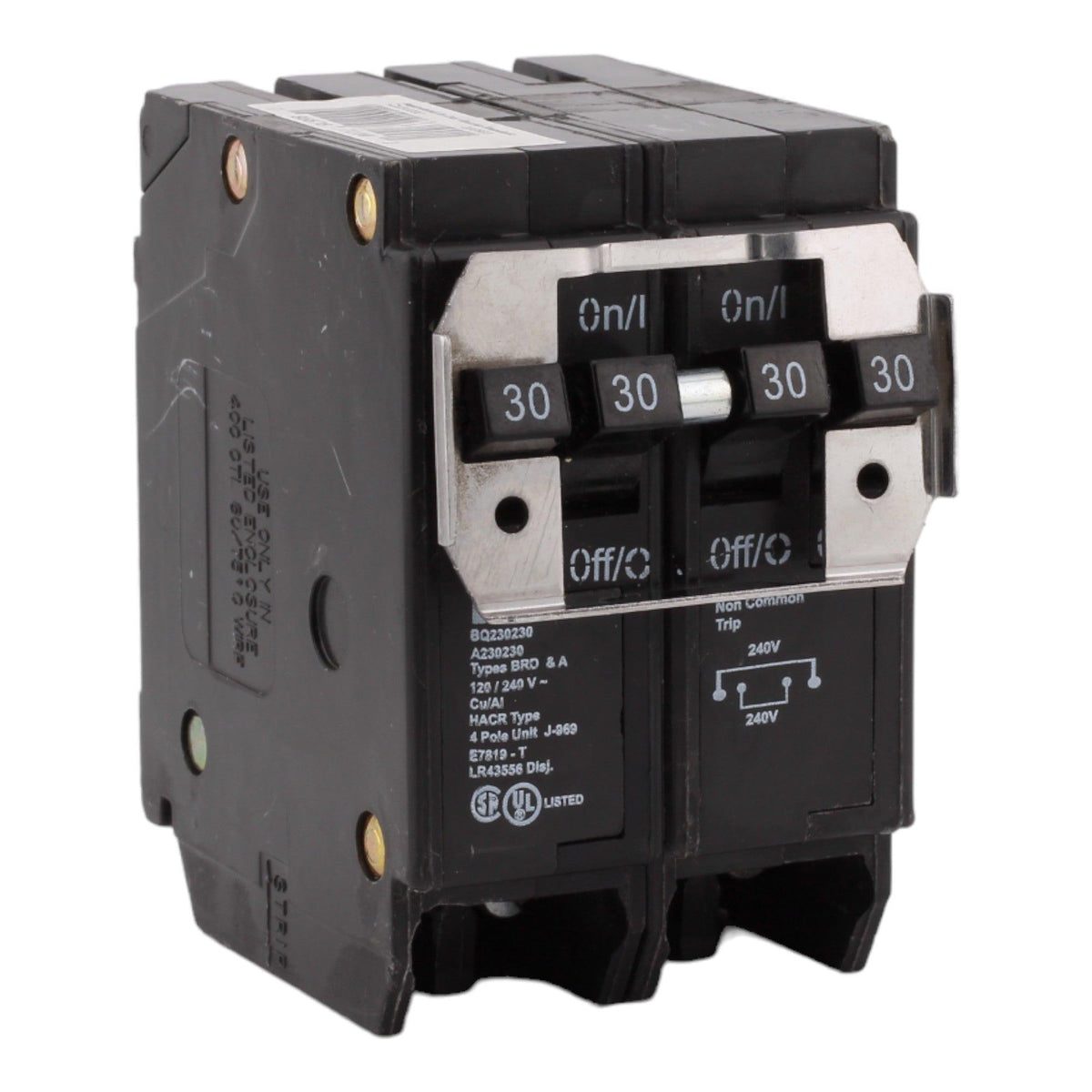

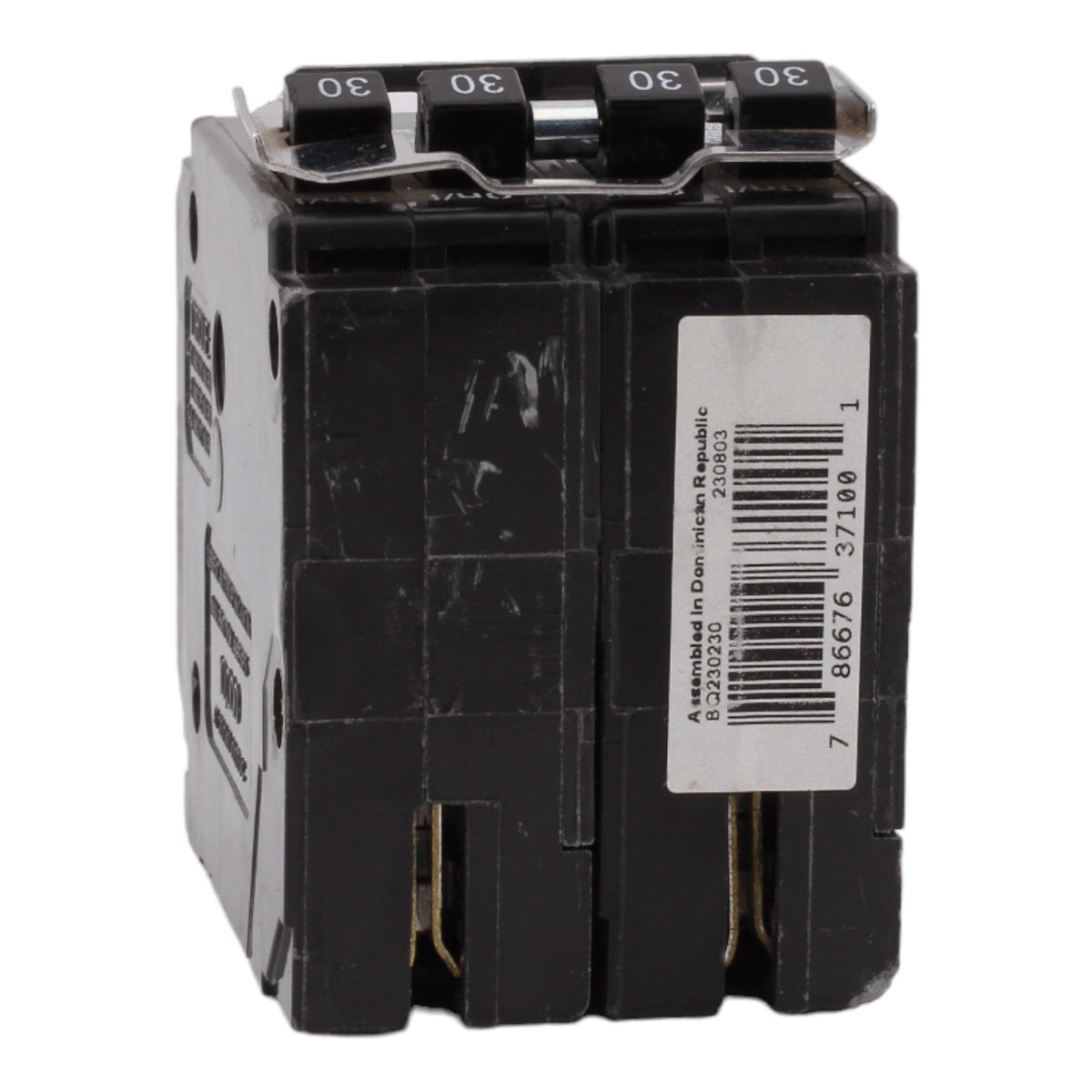

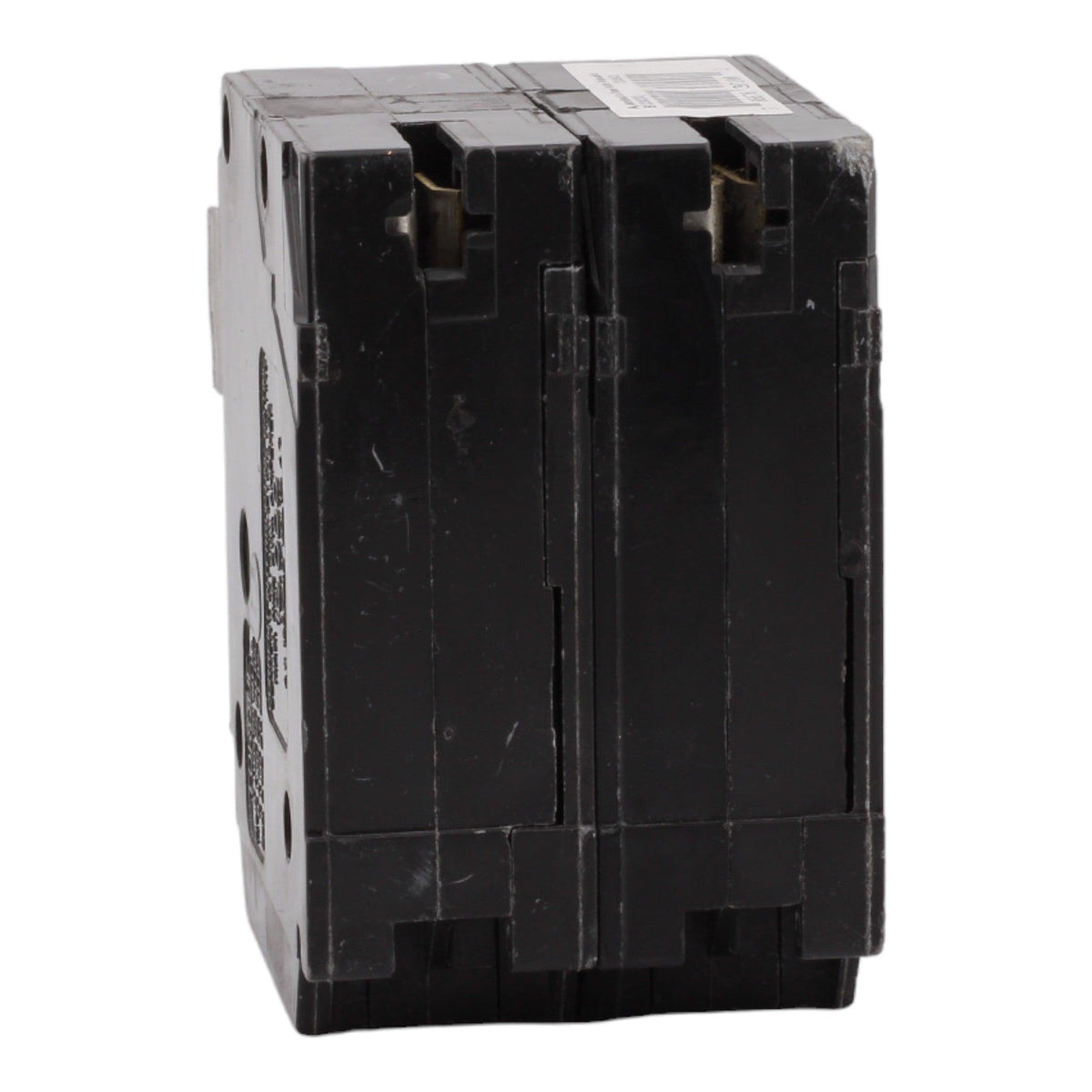

Eaton BQC230230, (2) 30A, 120/240V, 4-Pole, 10kA, Thermal Magnetic Circuit Breaker, Plug-On, for Type BR Load Centers
Essential Product Info
■ Brand: Eaton
■ Manufacturer: Eaton Corporation
■ Model Number: BQC230230
■ UPC Number: 786676371896
■ Type: Type BQC 1-Inch CTL Plug-On Circuit Breaker
■ Current Rating: (2) Two-Pole 30 Amps (30A)
■ Voltage Rating: 120/240 Volts AC (120/240V)
■ Mounting Type: Plug-On
■ Number of Poles: 4 Poles (4P)
■ Short Circuit Current Rating (SCCR): 10,000 Amps (10kA AIR)
■ Circuit Breaker Type: Thermal Magnetic Circuit Breaker
■ Trip Type: Common Breaker Trip
■ Compatibility: Type BR Load Centers
■ Electrical Connection: Standard Lug Connection
■ Wire Size Range: #14-4 AWG Copper/Aluminum
■ Terminal Type: Plug-On
■ Dimensions (H × W × D): 3.0 × 2.0 × 3.0 inches
■ Weight: 0.9 pounds (lbs)
■ Certifications: UL 489, Federal Specifications Classification W-C375, HACR Rated
■ Safety Compliance: UL 489
Key Features and Benefits
✔ Reliable Circuit Protection – Provides overload and short-circuit protection to ensure safe electrical operation.
✔ Dual 30A Poles for Versatile Use – Two separate 30A double-pole breakers in a single unit for enhanced efficiency.
✔ Plug-On Mounting for Quick Installation – Designed for easy and secure installation in Type BR Load Centers.
✔ 10,000 Amps Interrupting Capacity (10kA AIR) – Supports high-performance short-circuit protection.
✔ Includes Rejection Tab Feature – Prevents improper breaker installation for added safety.
✔ UL Listed & Federal Spec Compliant – Meets industry safety and compliance standards for residential and commercial use.
Applications
✔ Residential & Commercial Load Centers – Ideal for home electrical panels and commercial power distribution.
✔ Industrial Electrical Protection – Suitable for warehouses, workshops, and high-power applications.
✔ HACR Applications – Designed for heating, air conditioning, and refrigeration circuit protection.
Why Choose Eaton?
Eaton is a trusted leader in intelligent power management, delivering reliable electrical protection solutions. The BQC230230 thermal magnetic circuit breaker offers superior safety, durability, and performance for residential, commercial, and industrial applications.
🔹 Upgrade your panel with the Eaton BQC230230 today! 🔹
